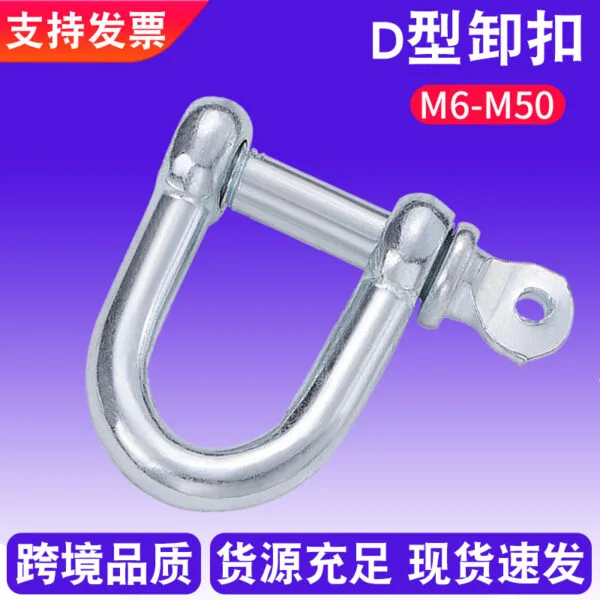

National Standard D Shackle, Galvanised D-shaped Lifting Ring, U-shaped Lock, M6 to M50, 18 Sizes

A D shackle is the standard link between a sling and a load: the D form keeps the pin in line with the pull, which is what stops the shackle opening under load. This is the galvanised carbon steel range in M6 to M50. Made by Zhuyin.

Galvanised D Shackle: Overview

Shackles are sized by the pin thread, not by the load. A small shackle next to a lifting sling looks undersized, but it is the pin that decides the rated capacity, so the size has to be matched to the sling and to the load rather than chosen by eye.

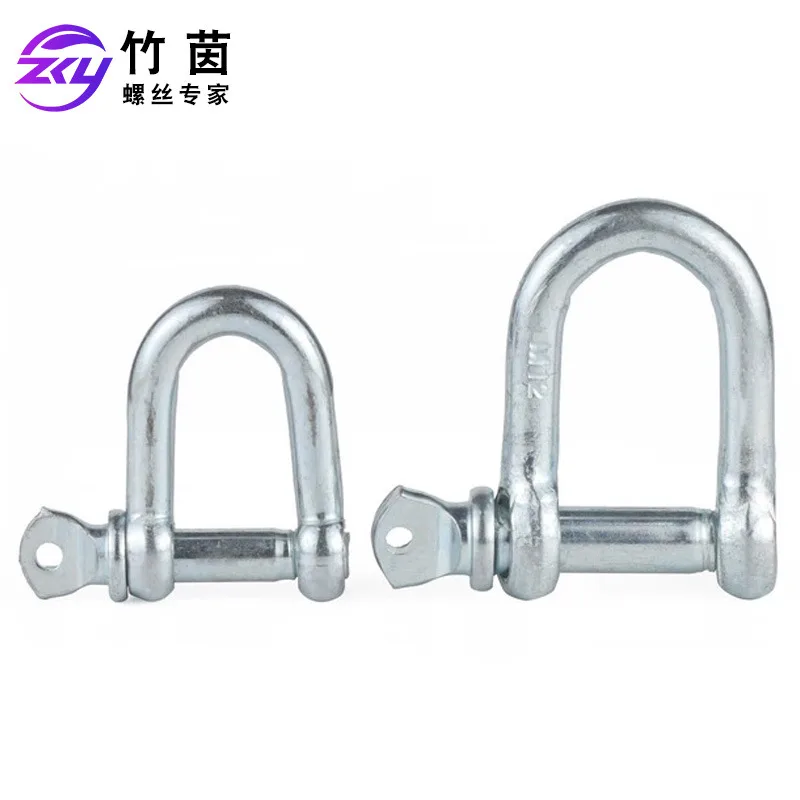

The D form is the shape for a straight pull. A bow shackle is used where the load comes in from several directions; a D shackle keeps the pin aligned with a single pull and takes less space in a tight eye.

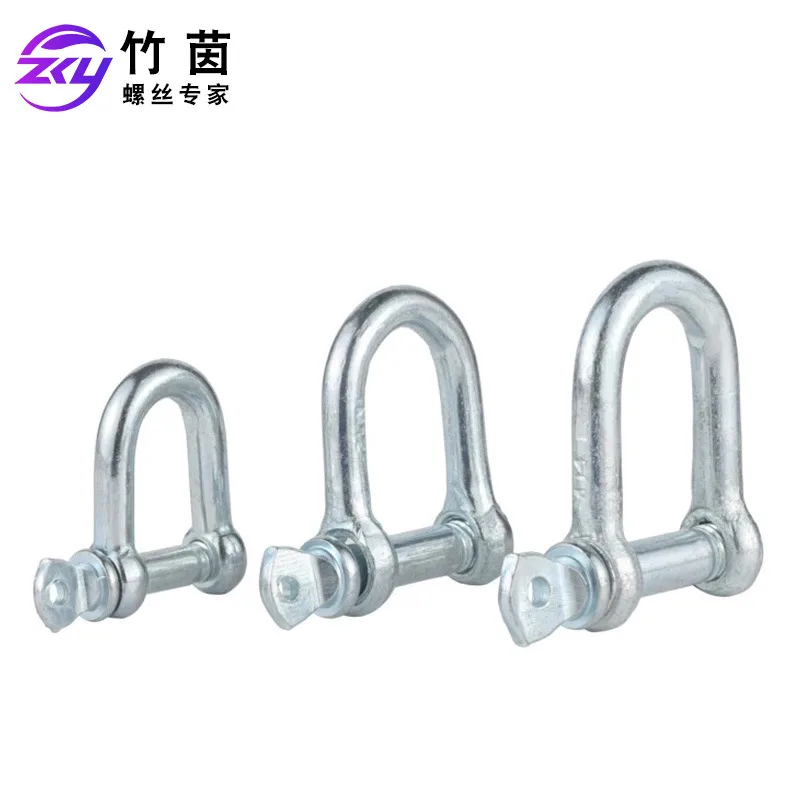

This range is galvanised carbon steel with a screw pin, covering M6, M8, M10, M12, M14, M16, M18, M20, M22, M25, M28, M30, M32, M36, M38, M42, M45 and M50, and the working load is marked by the supplier.

Key Features at a Glance

• Galvanised finish – carbon steel with a zinc coating for outdoor and marine use.
• D form – the pin stays in line with a straight pull.
• M6, M8, M10, M12, M14, M16, M18, M20, M22, M25, M28, M30, M32, M36, M38, M42, M45 and M50 – light rigging through to heavy lifting.

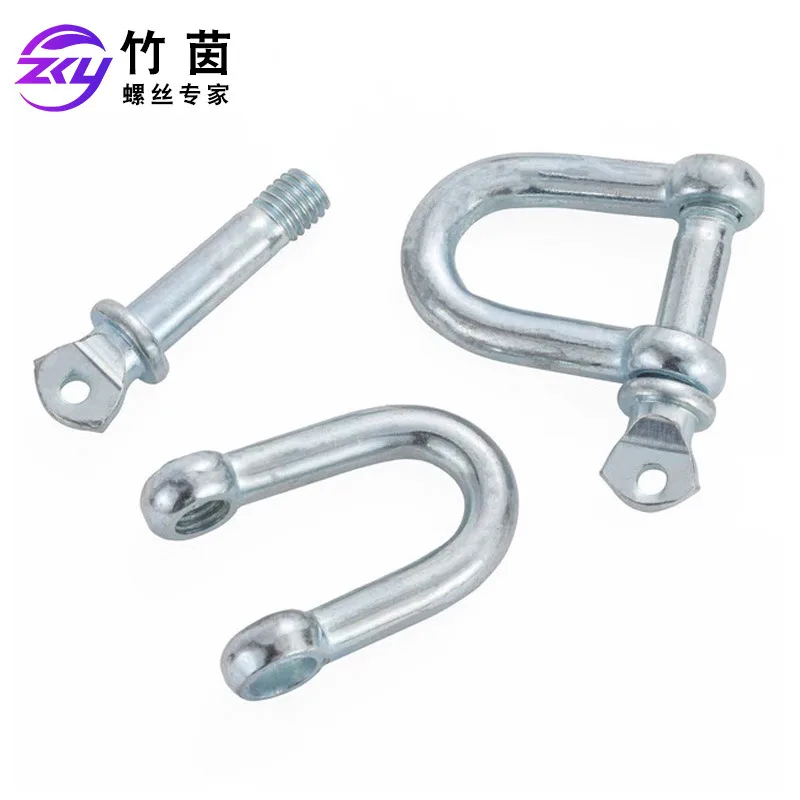

• Screw pin – removable, so the shackle can be fitted to a closed eye.
• Rated load marked – as specified by the supplier.
• Bulk cartons – supplied for trade and stock orders.

Selecting and Using a Shackle

Sizing

Match the pin diameter to the sling or eye it has to pass through, then check the rated load against the lift. An undersized pin wears and opens under load; an oversized shackle will not sit in the eye it is meant to hold.

Mark the size on the shackle when it goes into service. Once a mixed box of shackles is loose in a van, the marking on the body is the only reliable identifier.

D or bow

Use a D shackle for a single, straight pull and a bow shackle where the load comes from several directions. Fitting a D shackle to a multi-leg sling loads the pin off-centre, which is how shackles bend open.

Check the pin is fully home and tight before the lift. A screw pin that is only hand-started will work loose under vibration and cycle.

Inspection and Care

Before every use

Look for cracks at the crown, wear in the bow, a bent pin and damaged threads. Distortion and thread damage retire a shackle; they are not repairable.

Never weld, heat or re-bend a shackle. Heat changes the properties of the steel and the rated load no longer applies.

Storage

Store by size in a dry place. Galvanising resists weather, not a permanently wet toolbox.

Keep shackles out of the general hardware bin so a lifting item is not lost among unrated fittings.

Available Models and Prices

All sizes are in stock. Prices are per shackle in USD; carton prices on request.

Specifications

Packaging Information

Shackles ship bagged or boxed by size. Carton quantities are available on request.

Where It Is Used

Lifting and rigging, sling and strop assemblies, towing and recovery, and general load securing where a rated connection between a sling and a load is needed.

Choosing a Shackle

1. Size by pin diameter and rated load, not by how large the shackle looks.
2. D shackle for a straight single pull, bow shackle where the load comes from several directions.
3. Galvanised finish for outdoor and marine work; plain steel is enough indoors.
4. Check the rated load against the lift before ordering, and never exceed it.

Care and Maintenance

Inspect the crown, bow, pin and threads before each use.

Retire a shackle that is cracked, bent or has damaged threads.

Never weld, heat or re-bend a shackle.

Store by size, in the dry.

OEM and Bulk Supply

Own-brand marking on the body, custom sizes and bulk packaging are available on request, with OEM and ODM support.

Frequently Asked Questions

Which options are available?

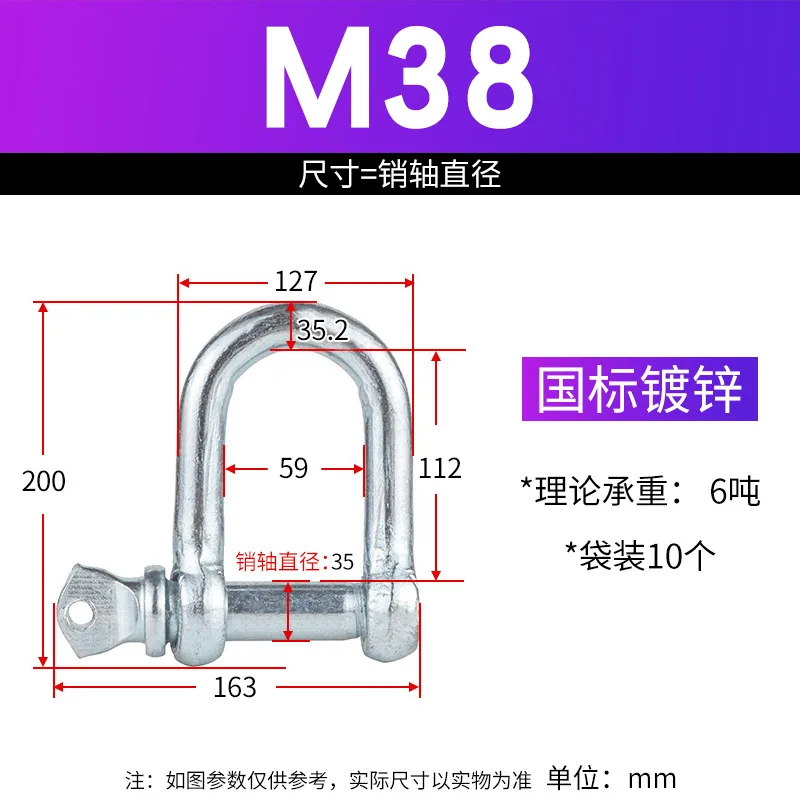

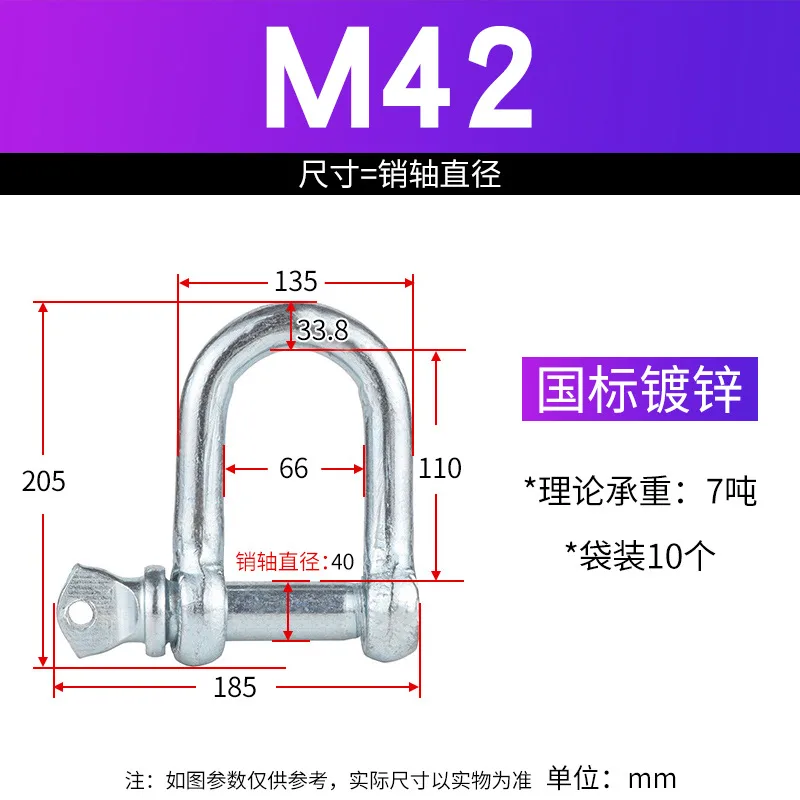

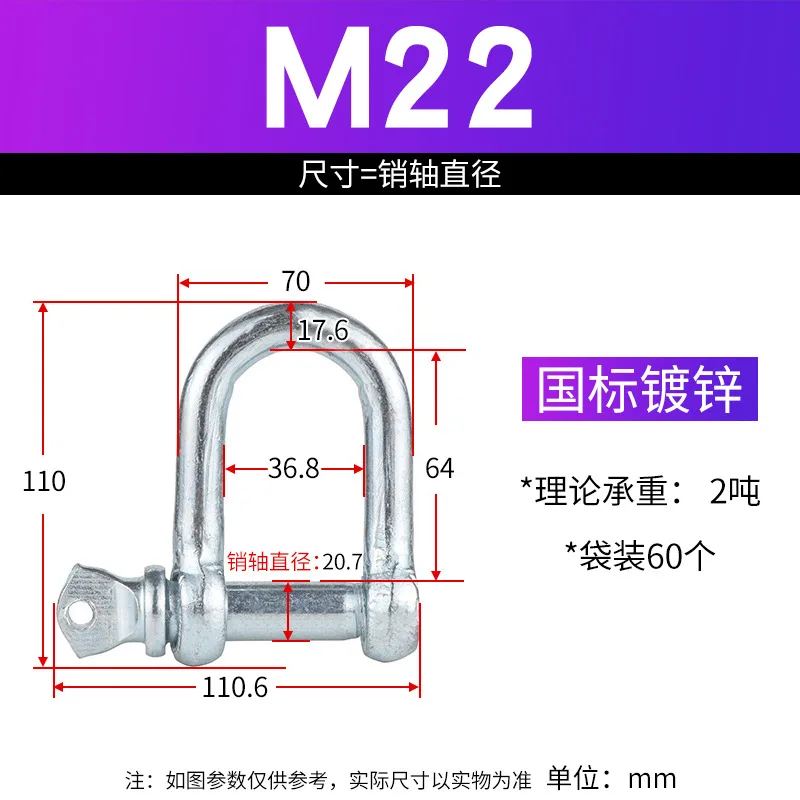

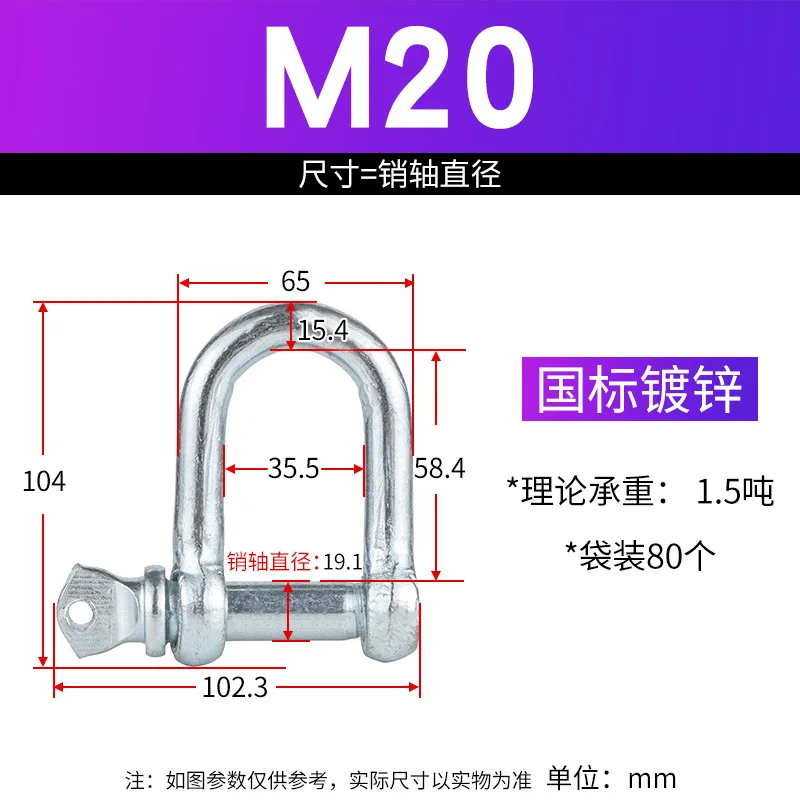

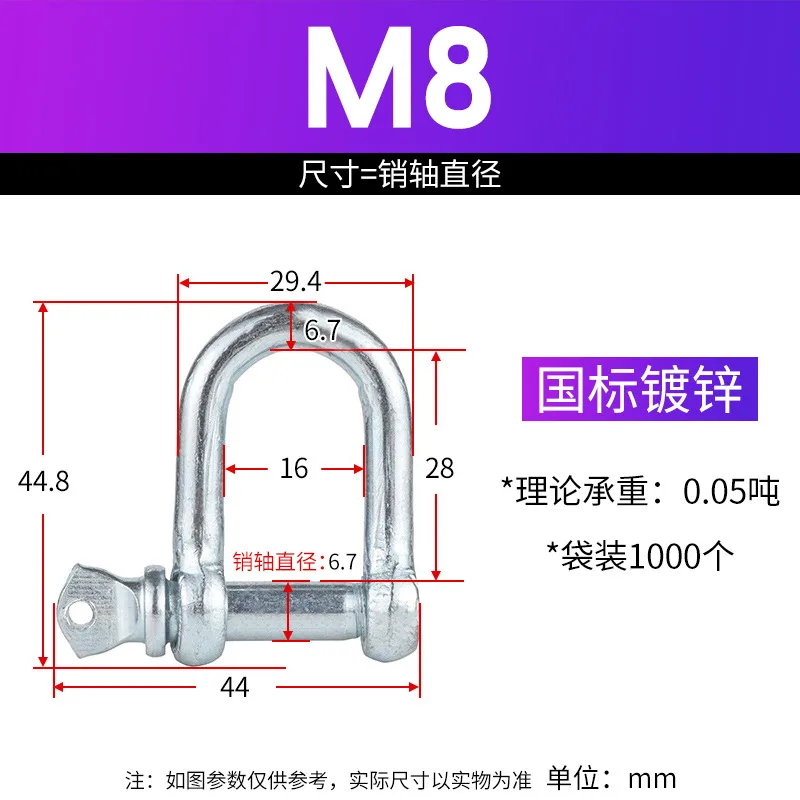

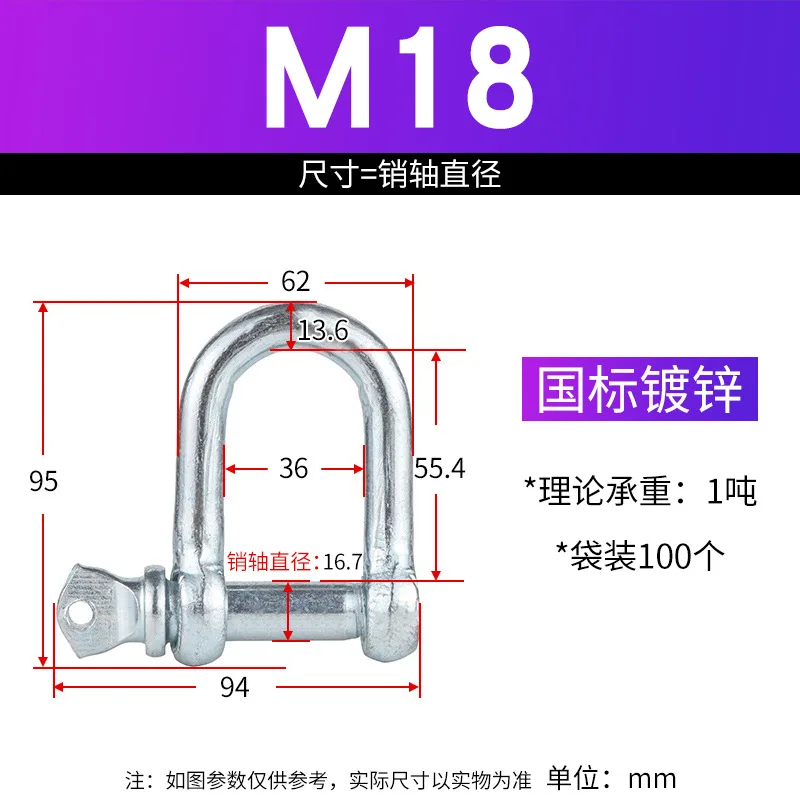

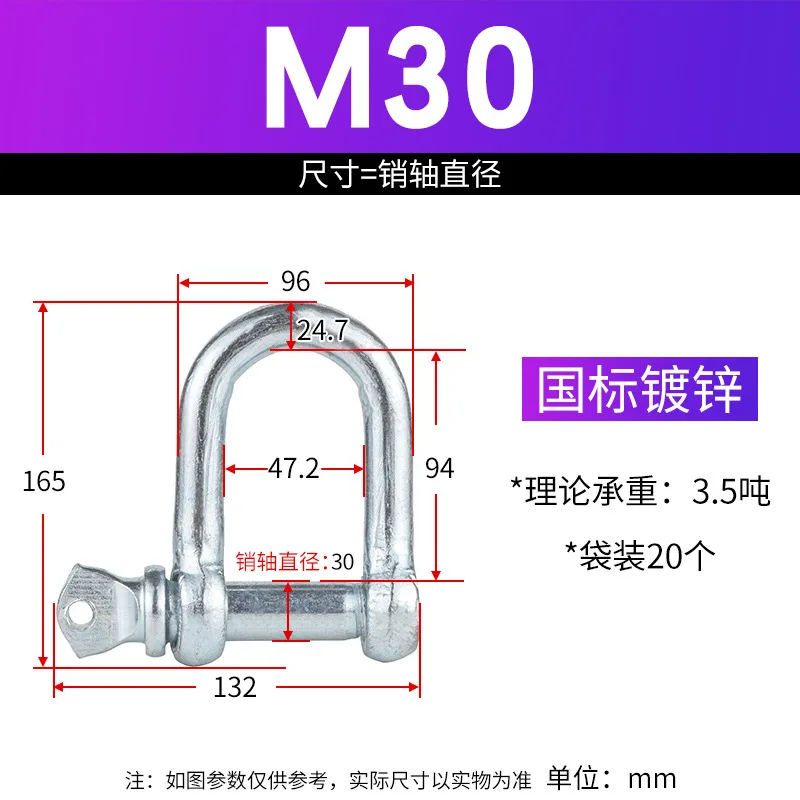

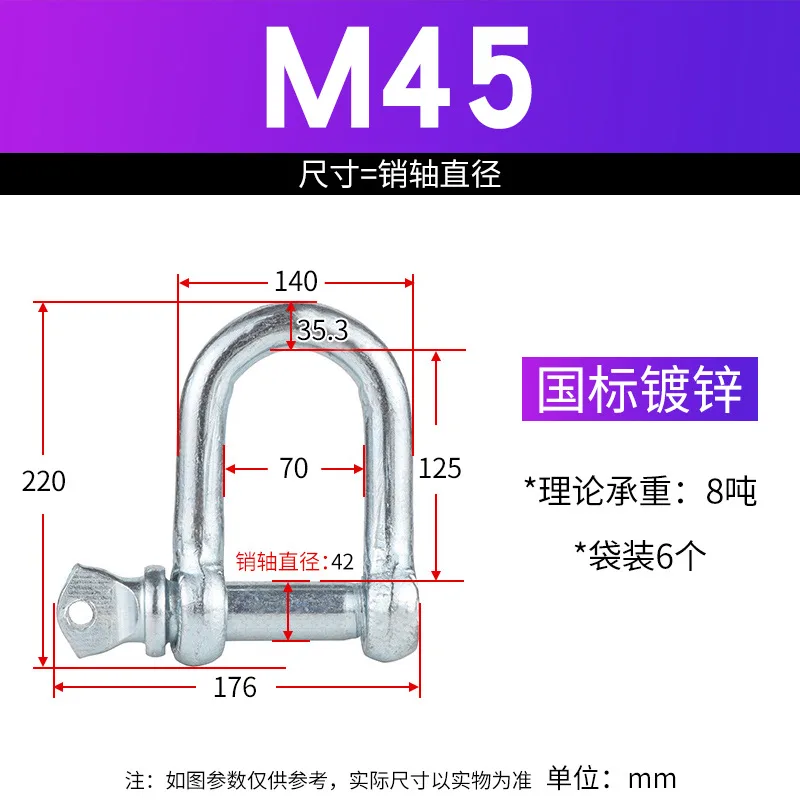

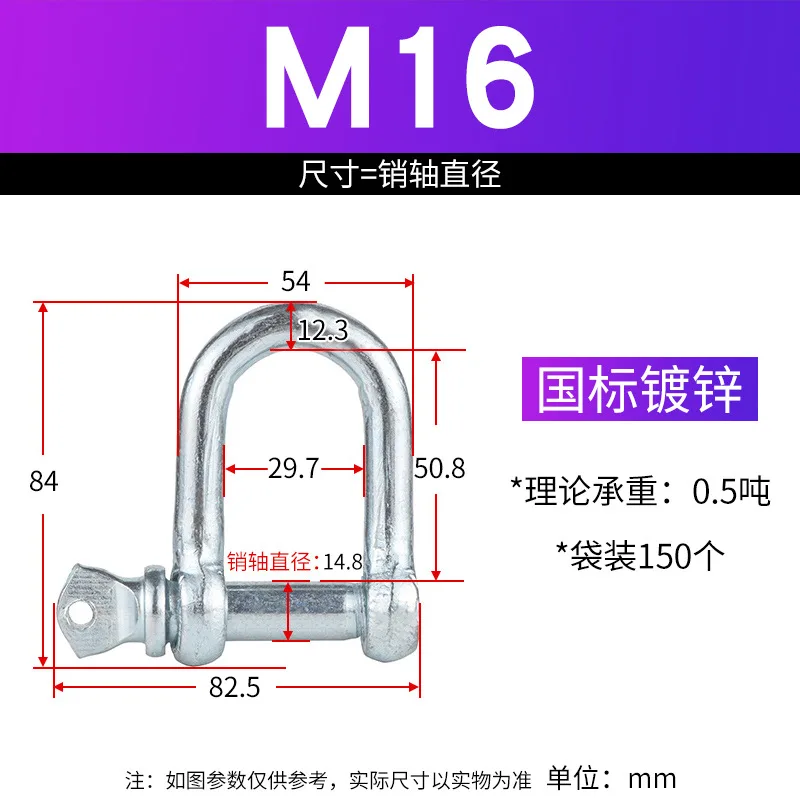

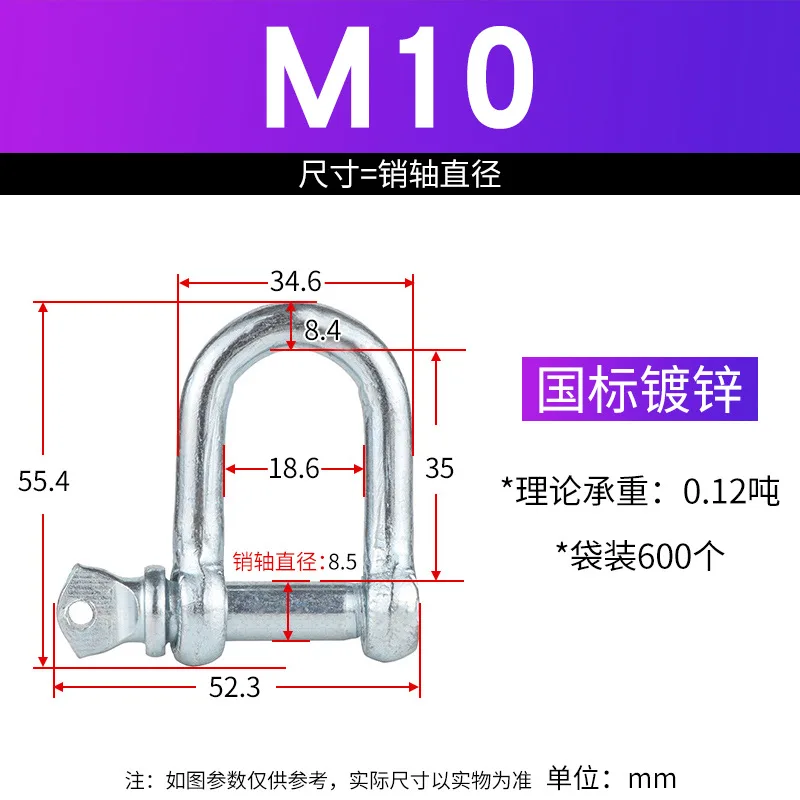

This listing covers 18 options: M6( Bag Pack 2000 Pc); M8( Bag Pack 1000 Pc); M10( Bag Pack 600 Pc); M12( Bag Pack 300 Pc); M14( Bag Pack 200 Pc); M16( Bag Pack 150 Pc); M18( Bag Pack 100 Pc); M20( Bag Pack 80 Pc); M22( Bag Pack 60 Pc); M25( Bag Pack 40 Pc); M28( Bag Pack 25 Pc); M30( Bag Pack 20 Pc); M32( Bag Pack 15 Pc); M36( Bag Pack 12 Pc); M38( Bag Pack 10 Pc); M42( Bag Pack 10 Pc); M45( Bag Pack 6 Pc); M50( Bag Pack 5 Pc). All are in stock and priced individually.

What is it made of?

Key material: Galvanised carbon steel. Other specifications are listed in the Specifications table above.

What is it used for?

Lifting and rigging, sling and strop assemblies, towing and recovery, and general load securing where a rated connection between a sling and a load is needed.

Can I buy in bulk or with my own branding?

Yes. Own-brand packaging, printed labels and mixed cartons are available on request.

Summary

A D shackle is the standard link between a sling and a load: the D form keeps the pin in line with the pull, which is what stops the shackle opening under load. Offered in 18 configurations, each priced separately.

Typical use: Lifting and rigging, sling and strop assemblies, towing and recovery, and general load securing where a rated connection between a sling and a load is needed.
