6-inch 1-inch water intake valve set fixed plate, 6-inch valve box, green water intake valve, outdoor

A quick water valve is the tap a landscape contractor does not have to walk back to: the body is buried at the point of use, and a key lifts the valve and starts the flow. This range covers 3/4 in, 1 in, 1/2 in in plastic and covers bodies, risers, boxes and couplers. Made by the supplier.

Quick Water Valve and Hose Fittings: Overview

The system is two parts: a valve body set into the ground or into a riser, and a key that opens it. Water is taken where it is needed instead of being dragged across a lawn in a hose.

Bodies are supplied in the common 3/4 in, 1 in, 1/2 in sizes, with risers where the outlet has to sit above ground level and valve boxes where the body needs protection and a flush finish.

The fittings are also sold on their own, because the couplers, elbows and repair connectors wear out long before the valve body does.

Key Features at a Glance

• 3/4 in, 1 in, 1/2 in sizes – the common garden and landscape connections.
• Quick-release bodies – opened with a standard key.
• Valve boxes included – a flush, protected installation.
• Risers and couplers – parts sold separately for repair work.
• UV-stable plastic – for outdoor and buried use.
• Repair and extension parts – hose couplers and repair connectors.

Installing the Valve

Setting the body

Set the body so the top is level with the finished ground, and bed it on gravel so it does not sink when the ground softens. A body set proud of the lawn will be hit by the mower, and one set too deep cannot be opened with the key.

Flush the line before the body is finally tightened. Grit and swarf from new pipework are what jam a valve open, and the valve is usually the last item fitted.

Valve boxes

A box keeps soil and grass out of the body and gives a flush finish in a lawn or a border. Choose the size from the pipework that has to pass through it, not only from the valve.

Leave the box slightly below the surrounding surface so the lid does not stand proud and catch a mower blade.

Care and Winterising

Before frost

Drain the line and open each valve so water does not sit in the body. Ice is what splits these fittings, not use.

Remove the key and store it indoors; a key left in the ground is the part that goes missing over winter.

Repairing leaks

A leaking valve is usually a worn O-ring rather than a failed body. Clean the seat and fit a new ring before replacing the whole unit.

Couplings and repair connectors are consumables. Keep spares on the van rather than ordering one at a time.

Available Models and Prices

All options are in stock. Prices are per piece in USD; carton prices on request.

Specifications

Packaging Information

Valves, risers and boxes ship bagged or boxed by size; carton quantities are available on request.

Where It Is Used

Garden and landscape irrigation, public green space and sports turf, and any site where water is needed at a fixed point without running a hose back to a tap.

Choosing Water Valve Parts

1. Size first: 3/4 in, 1 in, 1/2 in covers the common garden and landscape pipework.
2. A complete set (body, riser and box) suits a new installation; parts on their own suit repair work.
3. Choose a box size that fits the pipework that has to pass through it.
4. Keep spare couplers and O-rings in stock – these are the parts that wear.

Care and Maintenance

Drain and open the valve before frost so water does not sit in the body.

Clean the seat and replace the O-ring before replacing a leaking body.

Store keys indoors over winter.

Flush new pipework before the valve is finally tightened.

OEM and Bulk Supply

Own-brand packaging, custom colours and printed cartons are available on request, with OEM and ODM support.

Frequently Asked Questions

Which options are available?

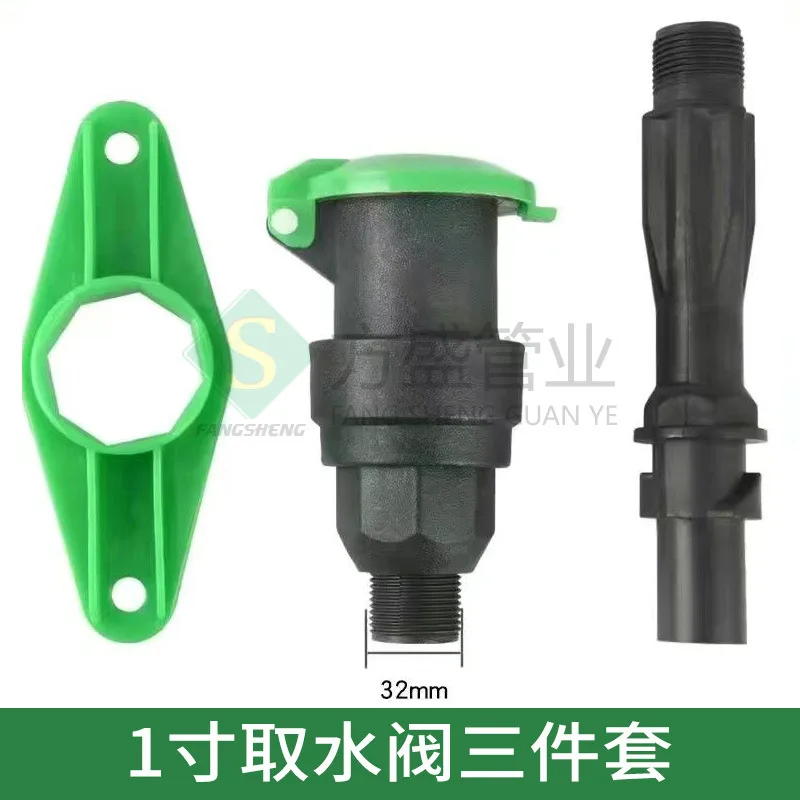

This listing covers 15 options: 3/4 in Plastic Riser; 1 in Plastic Riser; 3/4 in Water Valve 3 pc Set; 1 in Water Valve 3 pc Set; 3/4 in Water Valve 2 pc Set Valve Body; 1 in Water Valve 2 pc Set Valve Body; 3/4 in Water Valve Valve Body; 1 in Water Valve Valve Body; 3/4 in Riser+ Elbow + +1/2 in; 1 in Riser+ Elbow + +1/2 in; 3/4 in Riser+ Elbow; 1 in Riser+ Elbow; 3/4 in Water Valve; 1 in Water Valve; 6 in Valve Bo. All are in stock and priced individually.

What is it made of?

Key material: Plastic and alloy parts as supplied. Other specifications are listed in the Specifications table above.

What is it used for?

Garden and landscape irrigation, public green space and sports turf, and any site where water is needed at a fixed point without running a hose back to a tap.

Can I buy in bulk or with my own branding?

Yes. Own-brand packaging, printed labels and mixed cartons are available on request.

Summary

A quick water valve is the tap a landscape contractor does not have to walk back to: the body is buried at the point of use, and a key lifts the valve and starts the flow. Offered in 15 configurations, each priced separately.

Typical use: Garden and landscape irrigation, public green space and sports turf, and any site where water is needed at a fixed point without running a hose back to a tap.
