Nylon-Coated Self-Locking Tape Measure, 3 to 10 m, 11-Wire Embossed Blade

Two things separate this tape from a plain box tape: the blade is coated in nylon with an embossed print that survives being dragged across brick and block, and the case carries a rubberised outer sleeve so a fall onto concrete does not split it. Made by Dejiang.

Nylon-Coated Tape Measure: Overview

A tape blade fails from the outside in. The painted print wears off first where it is dragged along masonry, then the steel underneath starts to rust. A nylon coating puts a tougher layer over both the print and the steel, which is why coated blades are the ones bought for site work rather than for a drawer.

The embossed finish adds a raised texture to that coating, so the blade does not slide away under a pencil line and the numbers stay readable when the tape is worn.

The case is moulded in ABS and then wrapped in a soft rubberised sleeve, so the part that hits the ground first is the part that can take it. Sizes run from 3 m with a 16 mm blade to 10 m with a 25 mm blade, all self-locking.

Key Features at a Glance

• Nylon-coated blade – resists abrasion and rust where a painted blade wears through.
• Embossed print – textured graduations that stay legible as the tape ages.
• 11-wire blade – more steel strands, so a long tape stands out and kinks less.
• Rubberised case – soft outer sleeve over an ABS shell for drops and grip.
• Self-locking – the blade holds at length while you mark.
• Five sizes – 3 m, 5 m, 7.5 m and 10 m, in 16 mm to 25 mm widths.

Nylon Coating and Blade Build

What the nylon coating does

The coating is a nylon layer bonded over the steel before the graduations are printed, so the print sits on the coating rather than on bare metal. Dragging a tape along a block wall wears the coating slowly; on an uncoated blade, the same movement takes the numbers off in weeks.

It also seals the blade against water and mortar dust, which is what turns a steel blade rusty at the edges after a season outdoors.

Eleven-wire stiffness

The blade is built from eleven steel wires in its cross-section rather than the seven or nine of a basic tape. More wires in the same width means a stiffer curve, so the blade can be pushed out across a gap without folding over.

That is the difference that matters once the tape is longer than 5 m: a 10 m blade on a 25 mm width can be handled by one person instead of two.

Case, Lock and Handling

Rubberised sleeve over ABS

The inner shell is moulded ABS, which is stiff and light. The outer sleeve is a softer rubberised layer that takes the impact when the tape is dropped, and gives the case enough grip to sit on a sloping roof without sliding off.

It also stops the case from scratching whatever it is set down on, which matters when the tape is used over finished work.

Self-locking blade

The lock engages as the blade is pulled out, so it stays where it is put without holding the button. Press the release to let it retract.

Retract the blade under control rather than letting it snap back: a blade that runs home at full speed is what wears the return spring and the hook rivets.

Available Models and Prices

Five sizes are in stock. Prices are per tape in USD.

Specifications

Packaging Information

Tapes ship individually in retail boxes or bags. Carton quantities are available on request.

Where It Is Used

General construction and shop fitting, joinery and carpentry, drylining, roofing and cladding, and bulk supply where crews are issued a tape and expected to keep it for the season.

Choosing a Steel Tape Measure

1. Match blade length to the work: 3 m and 5 m for general use, 7.5 m and 10 m where a longer reach is needed.
2. Blade width decides how far the tape stands out unsupported – 19 mm is standard, 25 mm reaches further on long measurements.
3. Choose a nylon-coated or frosted blade where the tape is used every day and abrasion matters.
4. Check the hook and the case for how the tape will be carried: belt clip, lanyard or pocket.

Care and Maintenance

Wipe the blade dry before it retracts and let it retract slowly rather than letting it snap back; grit on the blade is what wears the coating and the return spring.

Do not use the tape as a straightedge or a scraper, and do not leave it clipped to a belt outdoors in the rain.

OEM and Bulk Supply

The supplier prints custom logos on the case and the blade and offers own-brand packaging, with OEM and ODM support for private-label tape ranges.

Frequently Asked Questions

Which options are available?

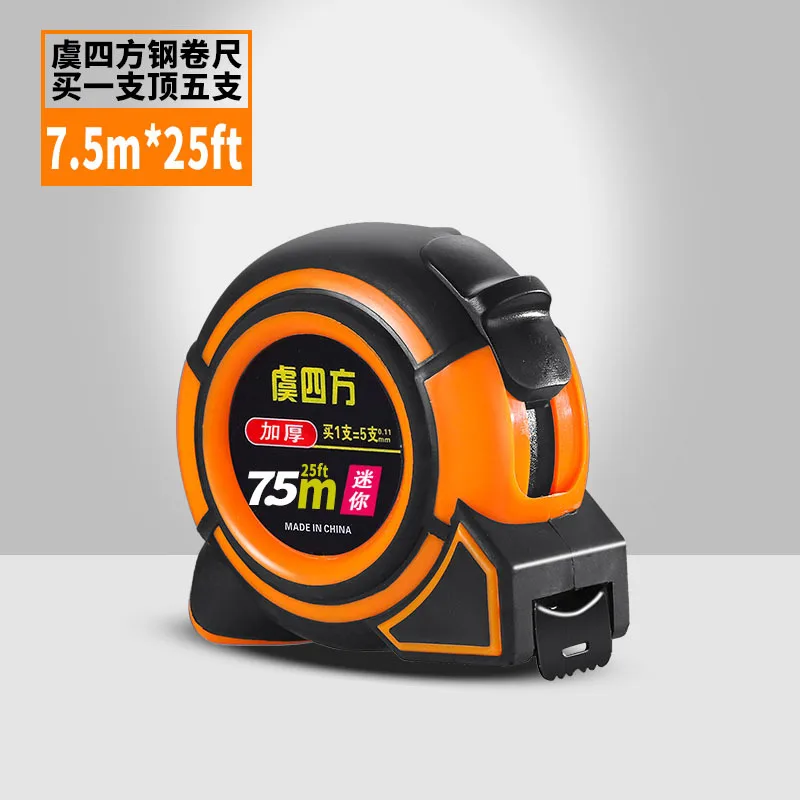

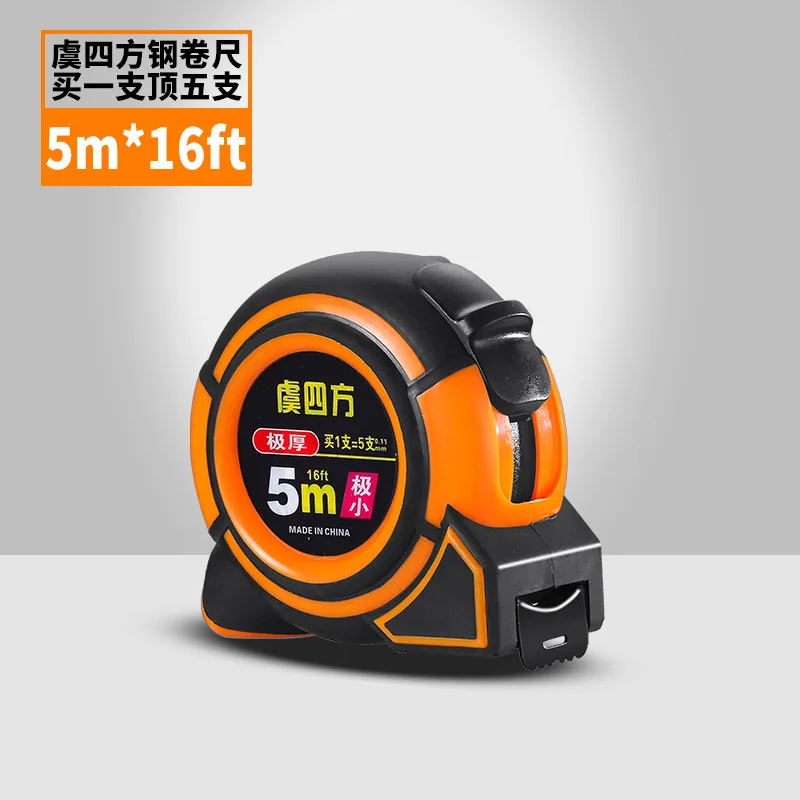

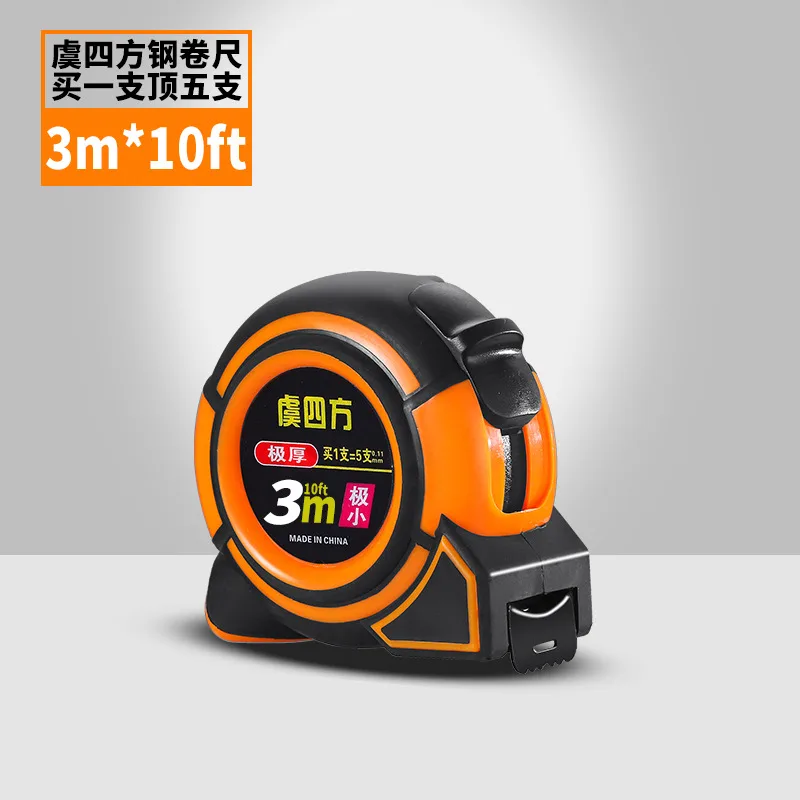

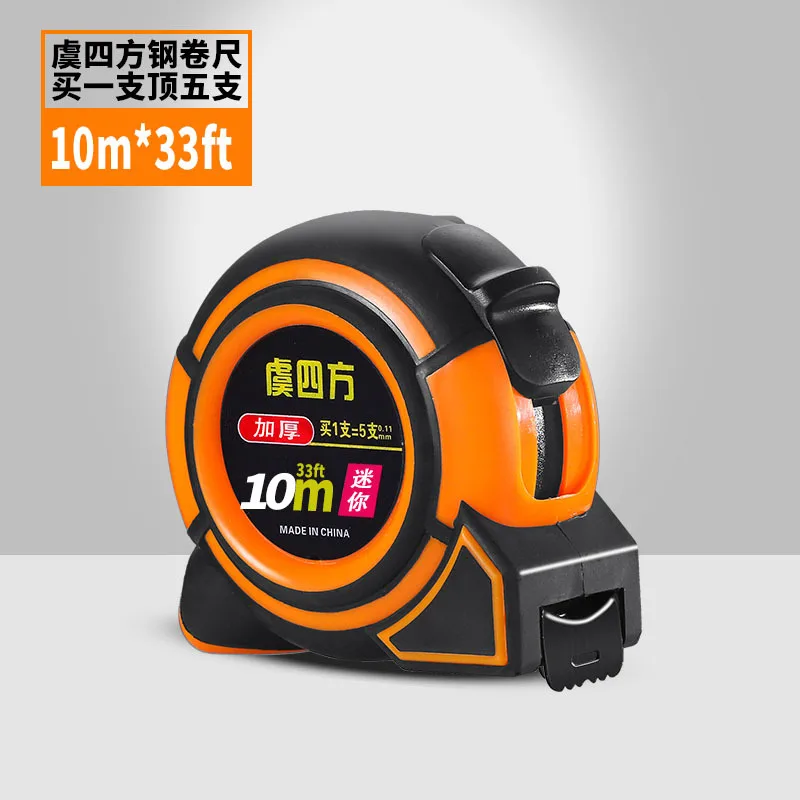

This listing covers 5 options: 3 m, 16 mm Nylon-Coated Blade; 5 m, 19 mm Nylon-Coated Blade; 5 m, 25 mm Nylon-Coated Blade; 7.5 m, 25 mm Nylon-Coated Blade; 10 m, 25 mm Nylon-Coated Blade. All are in stock and priced individually.

What is it used for?

General construction and shop fitting, joinery and carpentry, drylining, roofing and cladding, and bulk supply where crews are issued a tape and expected to keep it for the season.

Can I buy in bulk or with my own branding?

Yes. Custom case and blade printing, own-brand packaging and mixed cartons are available on request, with OEM and ODM support.

Summary

Two things separate this tape from a plain box tape: the blade is coated in nylon with an embossed print that survives being dragged across brick and block, and the case carries a rubberised outer sleeve so a fall onto concrete does not split it. Offered in 5 configurations, each priced separately.

Typical use: General construction and shop fitting, joinery and carpentry, drylining, roofing and cladding, and bulk supply where crews are issued a tape and expected to keep it for the season.
