Polishing Burr Set for Carving and Mirror Finishing, 80-2000 Grit, 2.35 mm and 3 mm Shanks

Carved olive pits, bone and horn are polished inside the tight corners first and across the flat faces last, and a burr that is too coarse at the wrong moment takes the detail off with the tool marks. This set covers the whole sequence in one box: eight burrs from 80 grit for rough shaping to 2000 grit for the final mirror pass, each on a steel shank that fits a rotary tool collet. Two shank connectors, 3 mm and 2.35 mm, come with the set so the same burrs run on a pendant motor and on a hand-piece with a different collet. The head profile is the supplier’s Blood Lotus shape, a narrow flame that reaches into slots and relief work without touching the surface beside it. Made by Changlong.

Polishing Burrs for Carving and Finishing: Overview

A polishing burr is a small abrasive head on a steel shank. It spins in a rotary tool or pendant motor and works the surface where a file or a sheet of abrasive paper cannot reach: the inside of a relief, the gap between two carved petals, the underside of a rim. The shank only holds the head, so the profile of the head decides which jobs the burr can do.

This set is arranged as a grit sequence rather than a mixed box. 80 to 320 grit removes tool marks and levels the surface. 400 to 600 grit takes out the scratches the coarse grades leave behind. 1000 and 2000 grit bring the piece up to a polish, usually with a little compound. Missing a grade is what leaves haze in a finished carving, so all eight grades are supplied together.

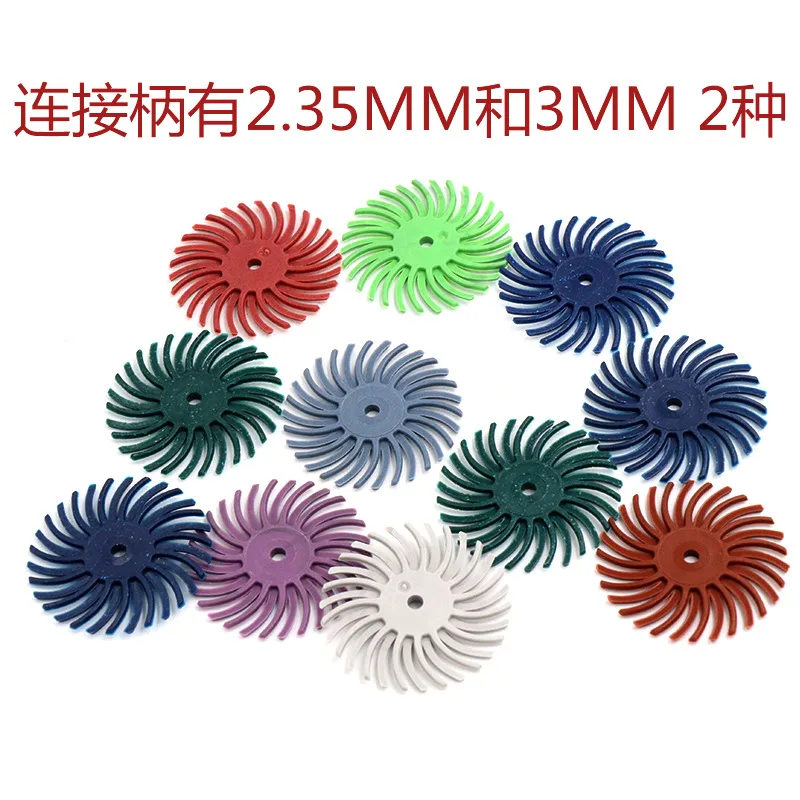

Two shank connectors are included, 3 mm and 2.35 mm. Rotary tools, pendant motors and micro hand-pieces do not all use the same collet, and the two connectors cover the common sizes so the same burrs can move between tools.

Key Features at a Glance

• Eight grit grades – 80, 120, 220, 320, 400, 600, 1000 and 2000 grit, the full sequence from shaping to mirror finish.
• Narrow flame profile – reaches into slots, relief and between carved petals without cutting into the surface beside the work.
• Two shank connectors – 3 mm and 2.35 mm, so the burrs fit rotary tools, pendant motors and micro hand-pieces.
• Steel shanks – straight and rigid in the collet, so the head runs true at speed instead of chattering on the work.
• Boxed by grade – one grit per size, easy to keep in order and easy to re-order the grade that wears out first.
• Light to post – the whole set stores in a drawer and ships at close to letter weight.

Working Through the Grit Sequence

Shaping and levelling, 80 to 320 grit

Use the coarse end for shaping only. 80 and 120 grit cut quickly and leave a scratch pattern that has to be removed later, so they belong on surfaces that still have material to come off: a flat face that needs levelling, an edge that needs a defined line, a carved area that is still too high.

220 and 320 grit are the transition grades. They take out the coarse scratches without removing much material, which is what makes them the right place to stop shaping and check the work under a light before moving on. If the piece still shows 120 grit marks at this stage, go back a grade rather than pressing harder on a fine burr.

Polishing, 400 to 2000 grit

400 and 600 grit are the working grades for most carvings. They remove the marks from the shaping stage and leave a surface that reads as smooth in the hand, which is where many utility pieces stop.

1000 and 2000 grit are for the mirror pass. Run them at lower speed than the coarse grades, keep the head moving, and add a little polishing compound once the surface is uniform. The result is a bright finish on horn, bone and dense wood, and a clean edge on the carved lines.

Between grades, brush the dust out of the carved lines and off the burr. Dust from a coarse grade left in a slot will keep cutting while a fine burr passes over it, and that is where stray scratches come from at the end of a job.

Specifications

Packaging Information

Each set ships with the eight grit grades and both shank connectors. Bulk orders can be supplied by grit grade on request.

Where This Set Is Used

Cleaning up carved olive pits and other small carvings, where the detail is finer than any file. Polishing horn, bone, amber and resin parts up to a mirror finish. Jewellery and model work that needs a bright finish inside a recess. Furniture and instrument repair, where a damaged edge has to be levelled and polished back without touching the surrounding finish.

How to Choose

1. Start with one set if you finish carvings by hand. Eight grades cover the whole sequence, and single grades can be added once you know which one you wear out first.
2. Check the collet size of your tool before ordering. The set includes 3 mm and 2.35 mm connectors, which covers most rotary tools and micro hand-pieces.
3. Order the grade you use most in quantity rather than a second full set. 400 and 600 grit are the first to wear in carving work.
4. Keep the grades apart in the box. Mixing a 120 grit burr into a fine grade is the most common way to scratch a finished piece.

Care and Maintenance

Brush the burr clean between grades. Abrasive dust left on the head keeps cutting on the next pass.

Run fine grades at lower speed. Heat glazes the abrasive and the burr stops cutting evenly, which shows up as polish marks on the work.

Store the burrs so the heads do not touch each other. A chipped head will not run true and leaves a line the next grade cannot remove.

Replace a burr when it stops cutting and starts burnishing. Continued use at that point polishes the surface with the wear rather than removing material.

OEM and Bulk Supply

G

r

i

t

g

r

a

d

e

s

,

s

e

t

c

o

n

t

e

n

t

s

a

n

d

b

o

x

l

a

b

e

l

l

i

n

g

c

a

n

b

e

s

p

e

c

i

f

i

e

d

f

o

r

p

r

i

v

a

t

e

–

l

a

b

e

l

a

n

d

b

u

l

k

o

r

d

e

r

s

.

M

i

x

e

d

g

r

a

d

e

s

e

t

s

a

n

d

s

i

n

g

l

e

–

g

r

a

d

e

p

a

c

k

s

a

r

e

b

o

t

h

a

v

a

i

l

a

b

l

e

.

Frequently Asked Questions

Will these burrs fit my rotary tool?

They fit tools that take a 3 mm or 2.35 mm shank, which covers most rotary tools, pendant motors and micro hand-pieces. Both connectors are included in the set, so check your collet size against those two.

What can the set be used on?

Carved olive pits, wood, horn, bone and resin are the common uses. The coarse grades shape and level the surface and the fine grades polish it, so the same set covers a whole job.

Which grade should I start with?

Start coarse on any surface that still has material to remove, then step through 220 and 320 before going fine. Pressing a fine burr on work that still needs shaping glazes the head and leaves a surface that is hard to polish.

Do I need a polishing compound?

The 1000 and 2000 grit burrs will bring the surface to a bright finish on their own. A little compound on the final pass speeds it up and evens out the surface on harder materials such as horn.

Can I order a single grit?

Yes. Bulk and OEM orders can be supplied by grade, so you can take extra of the grades you use most without ordering full sets.

Will the burr damage fine detail?

The narrow flame profile is made for relief work: it reaches into slots and between carved petals without cutting the surface beside it. Work at moderate speed and let the head do the cutting rather than pressing sideways.

Summary

A set of eight mounted polishing burrs in the Blood Lotus profile, from 80 grit for shaping to 2000 grit for a mirror finish, with 3 mm and 2.35 mm shank connectors for rotary tools and micro hand-pieces.

Prices start at $8.99 per set. Grade selection, set contents and box labelling can be specified for bulk and private-label orders.
