Wire Rope Electric Hoist, 200 to 1000 kg, 12 m to 30 m Lift

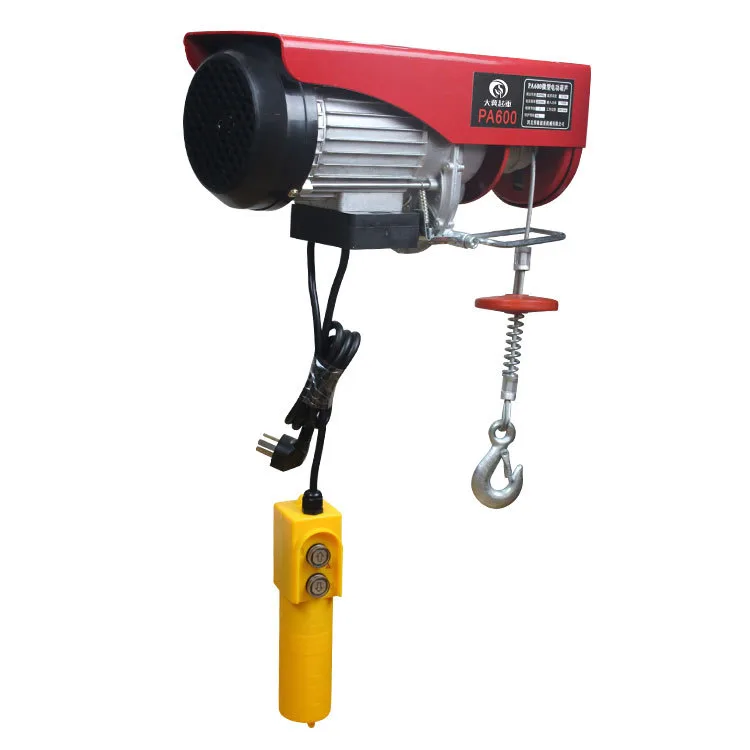

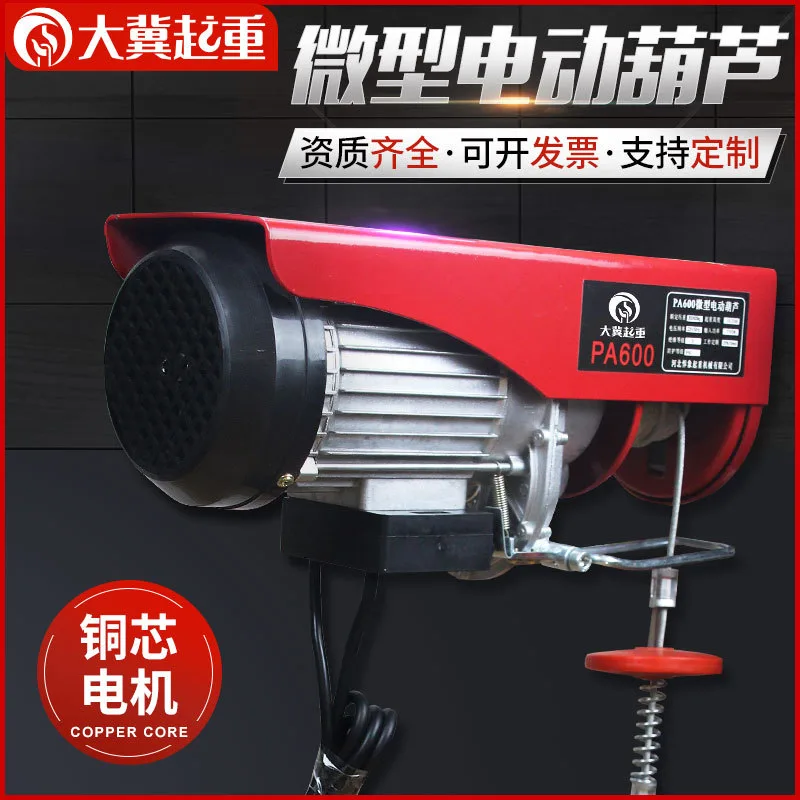

This is the hoist used where a load has to be raised through a window, a stairwell or a roof opening: a wire rope drum on a 220 V motor, controlled by a pendant, with no scaffolding and no scaffold-free carrying of materials. Made by Daji.

Electric Wire Rope Hoist: Overview

A wire rope hoist lifts material rather than people. It is bolted to a beam, a frame or a bracket with the rope dropping through an opening, and the load is raised and lowered on a pendant control.

Capacity and lift height are the two specifications that matter. This range covers 200 kg, 500 kg and 1000 kg, with 12 m, 20 m and 30 m of rope, so the same model can serve a first-floor window or a ten-storey drop.

The units run on 220 V single-phase, which is why they are used on domestic and small commercial sites where three-phase power is not available.

Key Features at a Glance

• 200, 500 and 1000 kg – capacity matched to the load.
• 12 m, 20 m and 30 m lift – rope length for the drop.
• 220 V single phase – runs on a domestic supply.
• Pendant control – operate from a safe position.
• Wire rope drive – compact and easy to inspect.

Choosing Capacity and Lift

Capacity

Choose the capacity from the heaviest load plus a margin, not from the average. Lifting a bag of cement and lifting a bag of cement that has taken on water are different jobs.

Where a load is lifted regularly, a hoist working near its limit will run hot and wear the brake; a size up is usually the cheaper choice over a season.

Lift height

Measure from the mounting point to the lowest point the load has to reach, then add the height of the load and a little slack. Rope that is too short leaves the load short of the floor.

The 12 m version covers most first-floor work; 20 m and 30 m are for taller buildings and deep drops.

Installation and Safety

Mounting

The mounting has to carry the load plus the hoist and the dynamic force of starting and stopping, which is greater than the static weight. Fix to a structural member, not to a bracket chosen for its convenience.

Keep the rope vertical and clear of edges: a rope running over a sharp edge will fail at that point, not at the hook.

Using it safely

Keep people clear of the load and never stand under it. Check the rope for kinks and broken strands before each use and check the limit stop works.

Hoists of this type are for material, not for lifting people, and the installation should be checked by someone competent before it is put to work.

Available Models and Prices

Eight configurations are in stock. Prices are per hoist in USD.

Specifications

Packaging Information

Hoists ship boxed, 10 kg to 20 kg depending on model. Freight is quoted per order.

Where It Is Used

Lifting building materials to upper floors, roof and window loading, warehouse and workshop lifting, farm and yard handling, and any vertical lift where no crane access exists.

Choosing the Right Unit

1. Size the unit to the floor and the doorway first: a platform that will not pass the door is no use however strong it is.
2. Match the wheels to the surface – smaller castors for smooth indoor floors, larger ones for yards, kerbs and paving.
3. For a trolley that is parked on a slope or loaded into a vehicle, order the braked castor option.
4. Check the capacity against the heaviest realistic load plus a margin, not against the average load.

Care and Maintenance

Check castors, pins and rope before each use, and keep swivel castors clear of tape, string and swarf.

Load the heaviest items low and over the axle, and never exceed the stated capacity.

Keep hinge and pivot points lightly oiled, and replace a flat-spotted castor rather than continuing to run it.

OEM and Bulk Supply

The supplier works to order with own-brand marking and packaging, and accepts OEM and ODM work.

Frequently Asked Questions

Which options are available?

This listing covers 8 options: 200 kg, 12 m Lift; 500 kg, 12 m Lift; 1000 kg, 12 m Lift; 200 kg, 20 m Lift; 500 kg, 20 m Lift; 1000 kg, 20 m Lift; 200 kg, 30 m Lift; 1000 kg, 30 m Lift. All are in stock and priced individually.

What is it used for?

Lifting building materials to upper floors, roof and window loading, warehouse and workshop lifting, farm and yard handling, and any vertical lift where no crane access exists.

Can I buy in bulk or with my own branding?

Yes. Own-brand marking and packaging are available on request, with OEM and ODM support.

Summary

This is the hoist used where a load has to be raised through a window, a stairwell or a roof opening: a wire rope drum on a 220 V motor, controlled by a pendant, with no scaffolding and no scaffold-free carrying of materials. Offered in 8 configurations, each priced separately.

Typical use: Lifting building materials to upper floors, roof and window loading, warehouse and workshop lifting, farm and yard handling, and any vertical lift where no crane access exists.
