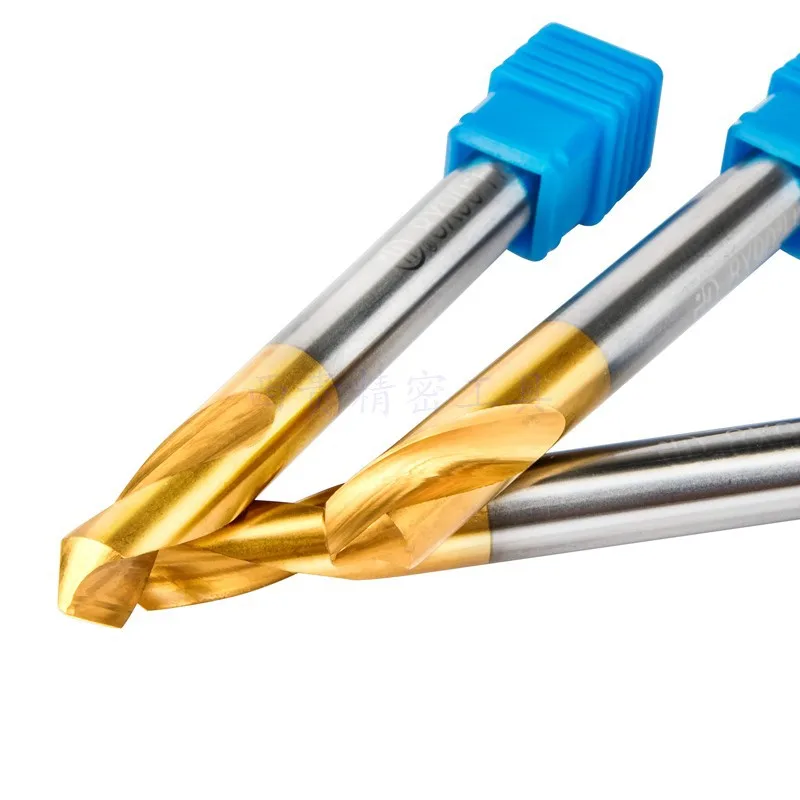

HSS Centre Drill and Countersink Set, 3 to 20 mm, 90 and 60 Degree, TiN Coated
Price range: $8.99 through $26.97
Tin-coated HSS centre drills and countersinks in 3 to 20 mm, in 90 degree and 60 degree points and in standard or long series.
Shipping & Delivery
-
Standard courier delivery
Tracked door-to-door delivery from our Shenzhen warehouse.
6-25 business days, depending on destination
From $7.30 · Free shipping from $99 (by order weight)
-
Express courier delivery
DHL, FedEx or UPS will deliver to the specified address.
2-8 business days, depending on destination
From $13.90
-
12-month warranty
-
30-day returns
More in This Category

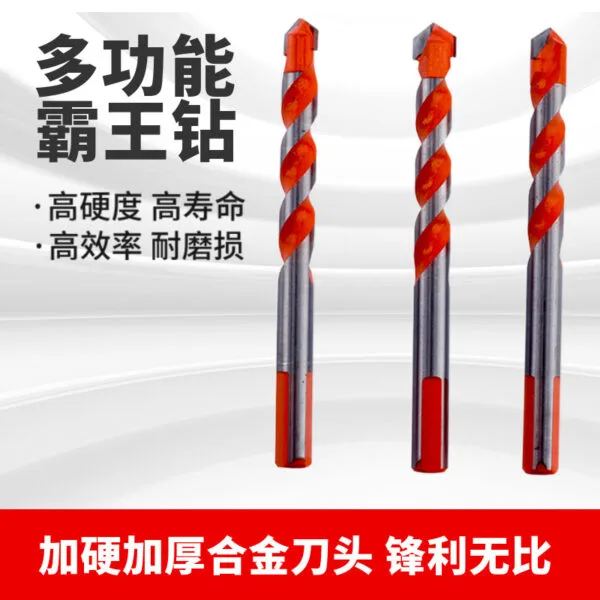

Multi-Material Drill Bit Set, 6 to 12 mm, for Tile, Marble, Glass and Concrete
Price range: $8.99 through $26.97
Industrial Self-Locking Steel Tape Measure, 0.63-0.98 in, Household & Industrial
Price range: $8.99 through $26.99
Non-Contact Inspection Pen with Scale, Aluminium Alloy, Brake Pad Measuring Gauge
Price range: $9.99 through $22.99
CNC Automatic Tool Measurement Probe, 20 mm (0.79 in)
Price range: $34.99 through $104.99
Aluminium Try Square, 25-40 cm, Stainless Steel, Woodworking
Price range: $13.99 through $16.99
Product Information
Product Attributes
| Type | HSS centre drill and countersink |
| Material | High speed steel, TiN coated |
| Point angles | 90 degrees and 60 degrees |
| Sizes | 3 to 20 mm |
| Series | Standard, long 100 mm, long 150 mm |
Packaging Information
Unit weight and carton dimensions for every model in this listing.
| Model | Weight (lb) |
|---|---|
| Unit | 1.102 |
Figures are measured per single unit. Carton quantities and mixed pallets are available on request.
A drill that starts off-centre drills a hole in the wrong place, and on a lathe it also whips. The centre drill is what stops that: a rigid stub with a small pilot point, spotted into the work so the following drill has a seat to start in, and the same tool chamfers the hole and deburrs it.
Centre Drill: Overview
These are HSS centre drills with a titanium nitride coating, ground with either a 90 degree or a 60 degree point. The 90 degree point is the general-purpose spotting and countersinking angle; the 60 degree point is used where a centre hole has to match a lathe centre or where a steeper chamfer is wanted on a screw head.
Sizes run from 3 mm to 20 mm. The smaller sizes, 3 to 8 mm, are the ones used with a hand drill or a pillar drill to spot a hole before drilling; 10 mm and above are used on larger work and in a lathe tailstock, and carry a bigger shank so the tool stays rigid under load.
A long series is also offered, with a 100 mm or 150 mm overall length, for spotting into a recess, past a boss or down between two upstands where a standard length tool will not reach.
Key Features at a Glance
- HSS with TiN coating – holds an edge in steel and alloy.
- 3 to 20 mm – spotting, countersinking and chamfering.
- 90 and 60 degree points – standard and centre-hole angles.
- Standard and long series – 100 mm and 150 mm lengths.
- Straight shank – fits a drill chuck or a collet.
- Ground flutes – clean cut, controllable chamfer.
Available Models and Prices
| Model | Overall Length | Length of Drill Hole (mm) | Cutting Diameter | Front Angle (°) | Material | Packing Quantity (pcs) | Price (USD) |
|---|---|---|---|---|---|---|---|
| 3*90 Degree | 50 | 10 | 3 | 90 | Cobalt bearing high speed steel | 1 | $8.99 |
| 4*90 Degree | 52 | 12 | 4 | 90 | Cobalt bearing high speed steel | 1 | $12.87 |
| 5*90 Degree | 60 | 15 | 5 | 90 | Cobalt bearing high speed steel | 1 | $14.47 |
| 6*90 Degree | 66 | 20 | 6 | 90 | Cobalt bearing high speed steel | 1 | $16.08 |
| 8*90 Degree | 25 | 79 | 8 | 90 | Cobalt bearing high speed steel | 1 | $19.30 |
| 10*90 Degree | 25 | 89 | 10 | 90 | Cobalt bearing high speed steel | 1 | $26.97 |
| 12*90 Degree | 30 | 102 | 12 | 90 | Cobalt bearing high speed steel | 1 | $26.97 |
| 16*90 Degree | 35 | 115 | 16 | 90 | Cobalt bearing high speed steel | 1 | $26.97 |
| 20*90 Degree | 40 | 131 | 20 | 90 | Cobalt bearing high speed steel | 1 | $26.97 |
| 3*60 Degree | 10 | 50 | 3 | 60° | Cobalt bearing high speed steel | 1 | $11.26 |
| 5*60 Degree | 15 | 60 | 5 | 60° | Cobalt bearing high speed steel | 1 | $16.08 |
| 8*60 Degree | 25 | 79 | 8 | 60° | Cobalt bearing high speed steel | 1 | $25.73 |
| 10*60 Degree | 25 | 89 | 10 | 60° | Cobalt bearing high speed steel | 1 | $26.97 |
| 16*60 Degree | 35 | 115 | 16 | 60° | Cobalt bearing high speed steel | 1 | $26.97 |
| 20*60 Degree | 40 | 131 | 20 | 60° | Cobalt bearing high speed steel | 1 | $26.97 |
| Extended 4*100*90 Degree | 100 | 12 | 7 | 90 | Cobalt bearing high speed steel | 1 | $26.97 |
| Extended 6*100*90 Degree | 100 | 20 | 6 | 90 | Cobalt bearing high speed steel | 1 | $26.97 |
| Extended 8*100*90 Degree | 100 | 25 | 8 | 90 | Cobalt bearing high speed steel | 1 | $26.97 |
| Extended 10*150*90 Degree | 150 | 25 | 10 | 90 | Cobalt bearing high speed steel | 1 | $26.97 |
| Extended 12*150*90 Degree | 150 | 30 | 12 | 90 | Cobalt bearing high speed steel | 1 | $26.97 |
All options are in stock. Prices are per unit in USD; carton prices on request.
Specifications
| Type | HSS centre drill and countersink |
| Material | High speed steel, TiN coated |
| Point angles | 90 degrees and 60 degrees |
| Sizes | 3 to 20 mm |
| Series | Standard, long 100 mm, long 150 mm |
| Shank | Straight |
| Application | Spotting, countersinking, chamfering, deburring |
| Unit weight | 0.5 kg |
| Packed weight (base unit) | 1.102 lb (0.5 kg) |
| Country/region of origin | China |
| Model options | 20 configurations available |
Packaging Information
| Model | Weight (lb) |
|---|---|
| Unit | 1.102 |
Abrasives ship in boxes or cartons. Carton quantities are available on request.
Where It Is Used
Centre drills are used to spot a start for a twist drill on flat or curved work, to set a centre hole for a lathe centre, to chamfer a hole before tapping so the thread starts cleanly, and to deburr both ends of a drilled hole. The small sizes cover general drilling and tapping work, while the larger sizes and the long series suit lathe work, deep recesses and heavy fabrication.
Choosing an Abrasive
- Match the abrasive to the material: emery and nylon cloth for metal and weld work, coated abrasives for paint and wood.
- Work down through the grades rather than jumping from coarse to fine, which leaves the coarse scratches visible.
- Choose the roll or sheet format by the job – cloth in rolls for weld toes and corners, discs and sheets for flat surfaces.
- Buy trade quantities where the abrasive is a consumable, and keep a coarse and a fine grade on the bench.
Care and Maintenance
Store abrasives dry and flat; a disc or a sheet that has taken on damp will not cut evenly and can delaminate.
Keep rust-removal and finishing abrasives apart, since grain picked up from a rusty surface will scratch the next job.
OEM and Bulk Supply
The supplier prints and labels to order and accepts OEM and ODM work on abrasives and finishing products.
Frequently Asked Questions
Which options are available?
This listing covers 20 options: 3*90 Degree; 4*90 Degree; 5*90 Degree; 6*90 Degree; 8*90 Degree; 10*90 Degree; 12*90 Degree; 16*90 Degree; 20*90 Degree; 3*60 Degree; 5*60 Degree; 8*60 Degree; 10*60 Degree; 16*60 Degree; 20*60 Degree; Extended 4*100*90 Degree; Extended 6*100*90 Degree; Extended 8*100*90 Degree; Extended 10*150*90 Degree; Extended 12*150*90 Degree. All are in stock and priced individually.
How heavy is it and how is it packed?
The unit weighs about 0.5 kg. Abrasives ship in boxes or cartons. Carton quantities are available on request.
What is it made of?
Key material: High speed steel, TiN coated. Other specifications are listed in the Specifications table above.
What is it used for?
Centre drills are used to spot a start for a twist drill on flat or curved work, to set a centre hole for a lathe centre, to chamfer a hole before tapping so the thread starts cleanly, and to deburr both ends of a drilled hole.
Can I buy in bulk or with my own branding?
Yes. Own-brand labelling and printed packaging are available on request.
Summary
A drill that starts off-centre drills a hole in the wrong place, and on a lathe it also whips. Offered in 20 configurations, each priced separately.
Typical use: Centre drills are used to spot a start for a twist drill on flat or curved work, to set a centre hole for a lathe centre, to chamfer a hole before tapping so the thread starts cleanly, and to deburr both ends of a drilled hole.
