Quick Coupler Valve Set with Ground Stake, 3/4 in and 1 in

This is the valve that turns a buried irrigation line into a hose point: drop the stake into the lawn, screw the valve onto the supply and a hose couples straight in. The valve closes when the hose is pulled out, so nothing is left running. Made by Gaibang.

Staked Quick Coupler Valve: Overview

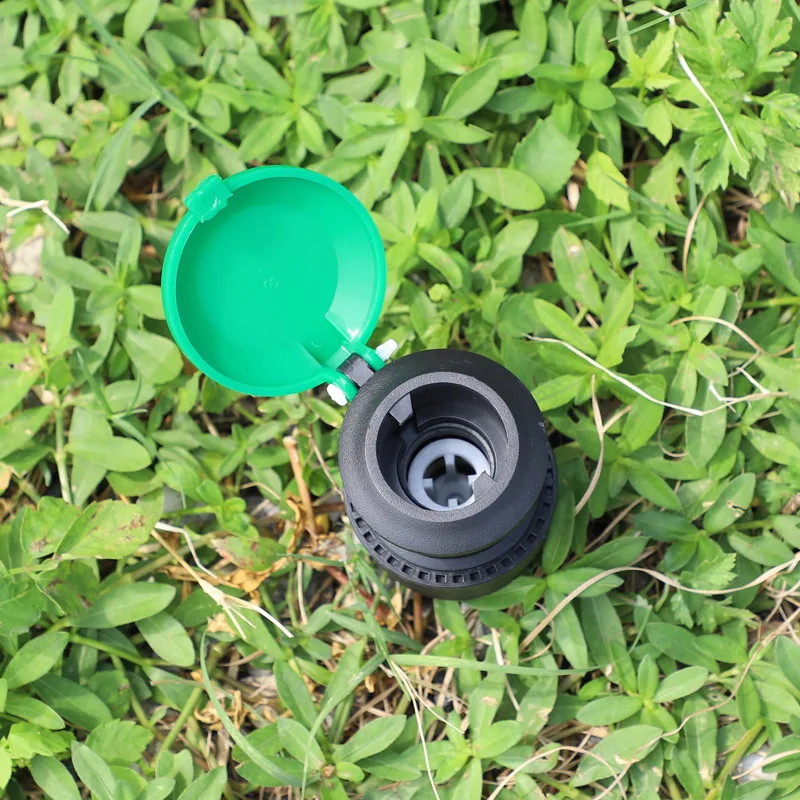

A quick coupler valve is the connection point of an irrigation system. The body sits on the end of the supply line with a spring-loaded seal, so a hose can be pushed in and locked, and pulled out to close the valve without touching the supply.

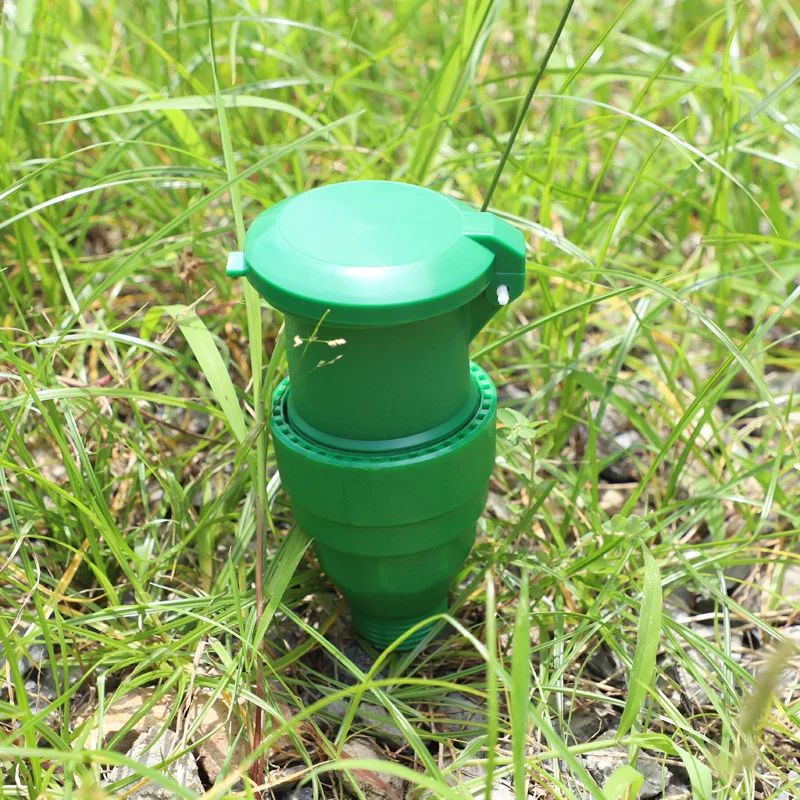

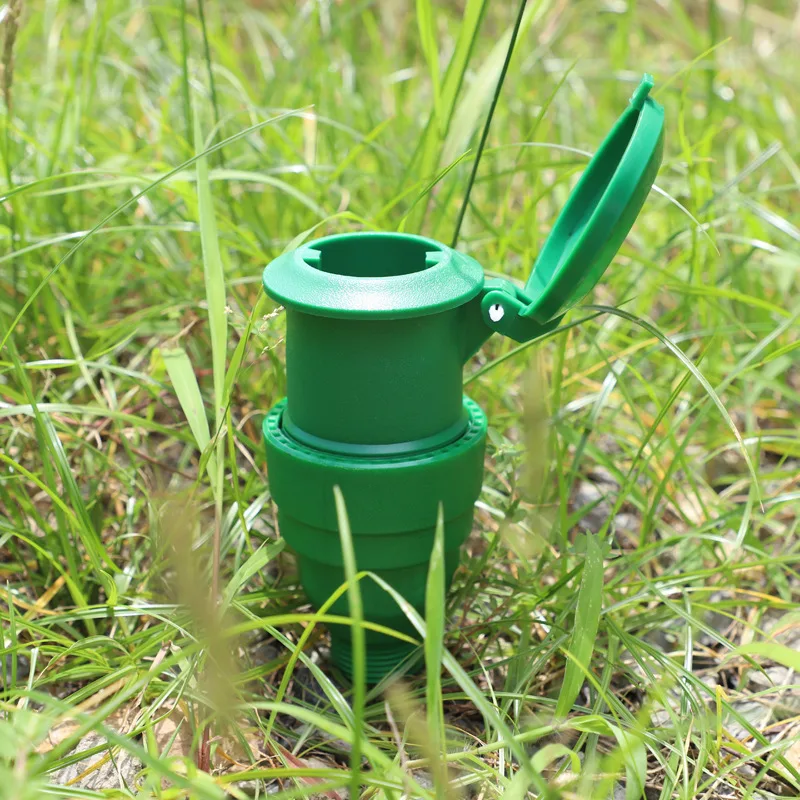

The stake version puts the valve on a ground spike that holds it upright in turf or a border. That keeps the outlet above grass level and stops soil and clippings being pushed into the coupling every time the hose is connected.

The range covers a 3/4 in (DN20) and a 1 in (DN25) valve, either on its own or as a set with the stake, in plain black or a green finish that disappears into planting.

Key Features at a Glance

• Ground stake – holds the outlet above turf so the coupling stays clean.
• 3/4 in and 1 in – DN20 and DN25 bodies to match the supply line.
• Valve or set – buy the valve alone or with the stake.
• Plain or green – black for visibility, green to blend into planting.
• Suits irrigation systems – lawn, borders and greenhouse supply points.

How It Fits a System

On the supply line

The valve is fitted to the end of a supply pipe, usually through a tee, so a hose point can be dropped wherever watering is needed. The stake version is used where the pipe comes up out of the ground in a lawn or a bed and there is nothing to fix a bracket to.

Because the coupling is spring-loaded, the hose is pushed in and locks; pulling it out closes the valve. That means one supply can serve several stakes around a garden without a separate tap at each.

Picking the size

Match the valve to the supply pipe, not to the hose: 3/4 in (DN20) is the usual size off a domestic garden line, and 1 in (DN25) is used where a longer run or several outlets are fed from one point.

The green sets are the same body and stake in a colour that does not stand out against grass, which is what landscapers specify for domestic work.

Fitting and Care

Fitting the stake

Drive the stake so the coupling sits level with or just above the surface, then flush the line before connecting the valve so grit does not lodge in the seal.

In heavy clay, check the stake still stands upright after the first watering; a staked valve that leans will not seal against a hose pushed in at an angle.

Through the season

Rinse soil off the coupling before the hose is connected, and leave the hose out of the valve over winter so the seal is not compressed for months at a time.

If the valve is left in ground that freezes, lift the stake and store it dry.

Available Models and Prices

Four options are in stock. Prices are per unit in USD.

Specifications

Packaging Information

Valves and stakes ship individually bagged. Carton quantities are available on request.

Where It Is Used

Lawn and border irrigation, domestic garden supply points, greenhouse and allotment watering, and commercial landscaping where a hose point has to be dropped into turf.

Choosing the Right Size and Part

1. Match the fitting to the supply pipe rather than to the hose: 3/4 in (DN20) for a domestic garden line, 1 in (DN25) where several outlets or a long run are fed from one point.
2. Buy a complete set where a new outlet is being added, and individual parts where only the seal, stem or plate has failed.
3. Choose the green finish where the outlet sits in turf or planting, and black where it needs to be easy to find.
4. For daily connection and disconnection, a brass internal thread outlasts a plastic one.

Care and Maintenance

Flush the supply line before fitting or refitting anything on it: grit left in the pipe is what scores a new seal.

Check the thread size on the male fitting before ordering, since 3/4 in and 1 in look similar and will not interchange.

Drain irrigation fittings before frost, and store them dry rather than leaving them in the ground over winter.

OEM and Bulk Supply

The supplier moulds to order and prints or labels own-brand packaging, with OEM and ODM support for private-label irrigation ranges.

Frequently Asked Questions

Which options are available?

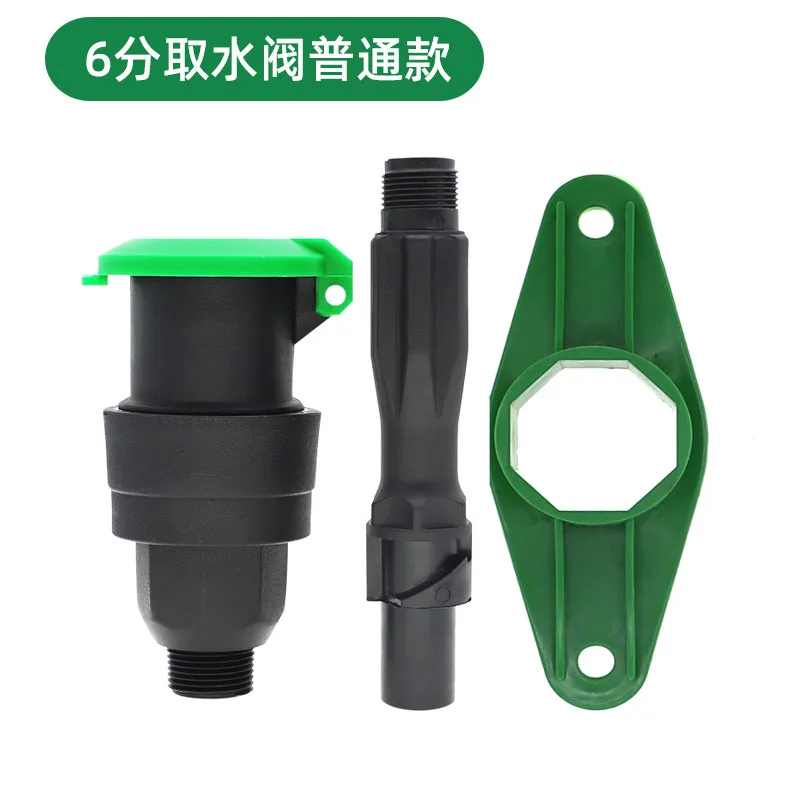

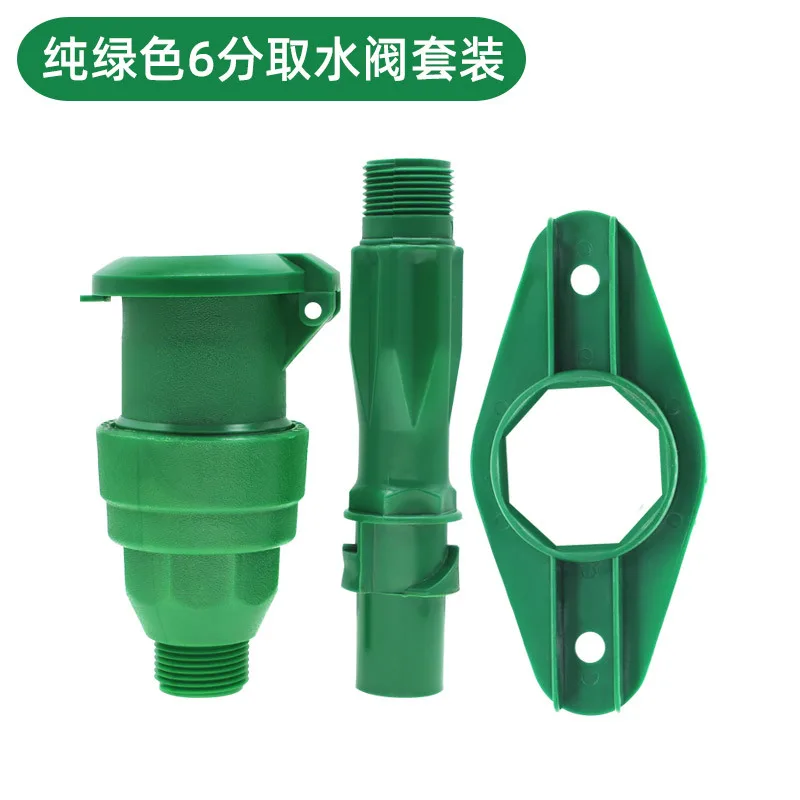

This listing covers 4 options: 3/4 in Valve, Plain; 1 in Valve, Plain; 3/4 in Valve Set, Green; 1 in Valve Set, Green. All are in stock and priced individually.

How heavy is it and how is it packed?

The unit weighs about 0.56 kg. Valves and stakes ship individually bagged. Carton quantities are available on request.

What is it made of?

Key material: PP body with spring-loaded seal. Other specifications are listed in the Specifications table above.

What is it used for?

Lawn and border irrigation, domestic garden supply points, greenhouse and allotment watering, and commercial landscaping where a hose point has to be dropped into turf.

Can I buy in bulk or with my own branding?

Yes. Own-brand moulding, printing and custom packaging are available on request, with OEM and ODM support.

Summary

This is the valve that turns a buried irrigation line into a hose point: drop the stake into the lawn, screw the valve onto the supply and a hose couples straight in. Offered in 4 configurations, each priced separately.

Typical use: Lawn and border irrigation, domestic garden supply points, greenhouse and allotment watering, and commercial landscaping where a hose point has to be dropped into turf.
