Rubber-Sleeved Drop-Resistant Tape Measure, Matte or Electroplated Blade

Two choices decide how this tape behaves: the case is wrapped in a rubber sleeve that absorbs the drop, and the blade is ordered either matte, which kills glare, or electroplated, which stands up to damp. Both are 11-wire blades. Made by Dejiang.

Rubber-Sleeved Tape Measure: Overview

A tape measure on a site is dropped more often than it is set down, and the case is what gives out first. This one carries a moulded rubber sleeve over a thickened ABS shell, so the outer layer takes the scuffing and the impact and the shell underneath stays square.

The blade is the eleven-wire type: eleven steel strands across the section rather than seven or nine, which makes a blade stand out further before it folds and return straight after it is bent.

It is offered in two blade finishes. Matte is a low-reflectivity treatment for working under floodlights or in bright sun where a polished blade glares. Electroplated is a plated finish for damp sites, cold stores and vans where a bare steel blade would rust at the hook.

Key Features at a Glance

• Rubber-sleeved case – a soft outer layer over a thickened shell for drops and grip.
• 11-wire blade – stiffer at extension, so long measurements stand out further.
• Matte or electroplated – pick for low glare or for damp storage.

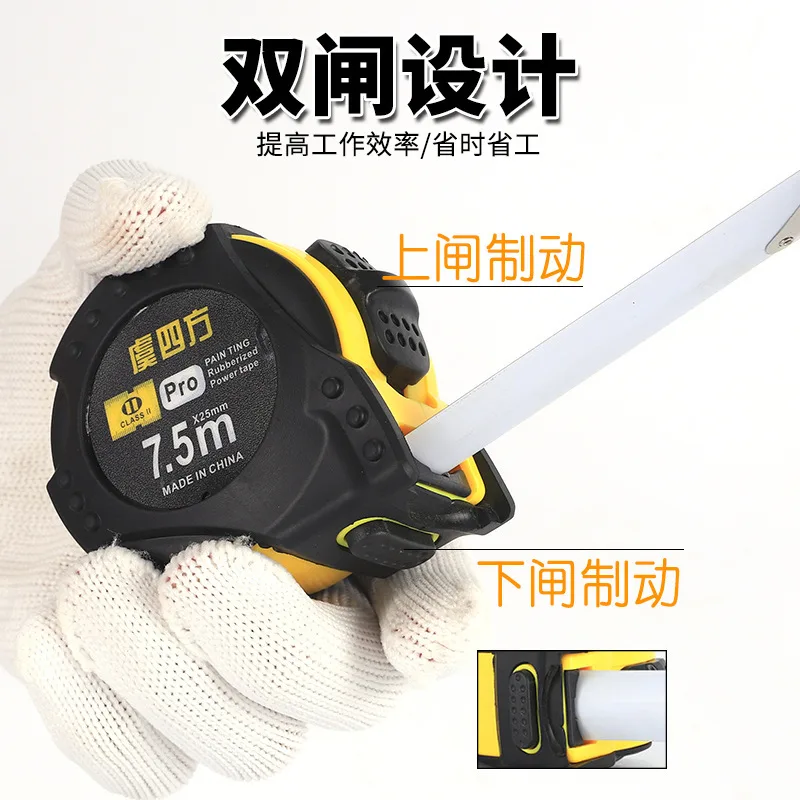

• Self-locking – the blade holds at length while you mark.
• Seven sizes – 3 m to 7.5 m in 16 mm to 25 mm widths.
• Bulk supply – bought by the carton for crews and tool stores.

Rubber Sleeve and Drop Protection

What the sleeve adds

The sleeve is a rubberised layer moulded over the ABS shell. When the tape is dropped, that layer deforms and spreads the impact instead of passing it straight into the shell, which is what cracks a case and jams the lock.

It also gives the case enough friction to stay where it is put, which matters on a pitched roof or a sloping bench where a hard plastic case will slide.

Thickened shell

Under the sleeve the shell wall is thicker than a standard case. A thicker wall keeps the blade mouth and the lock aligned, so the mechanism still runs true after the tape has been dropped a few times.

The trade-off is a little extra weight, which is why the range starts at 3 m with a 16 mm blade and stops at 7.5 m rather than going to 10 m.

Matte and Electroplated Blades

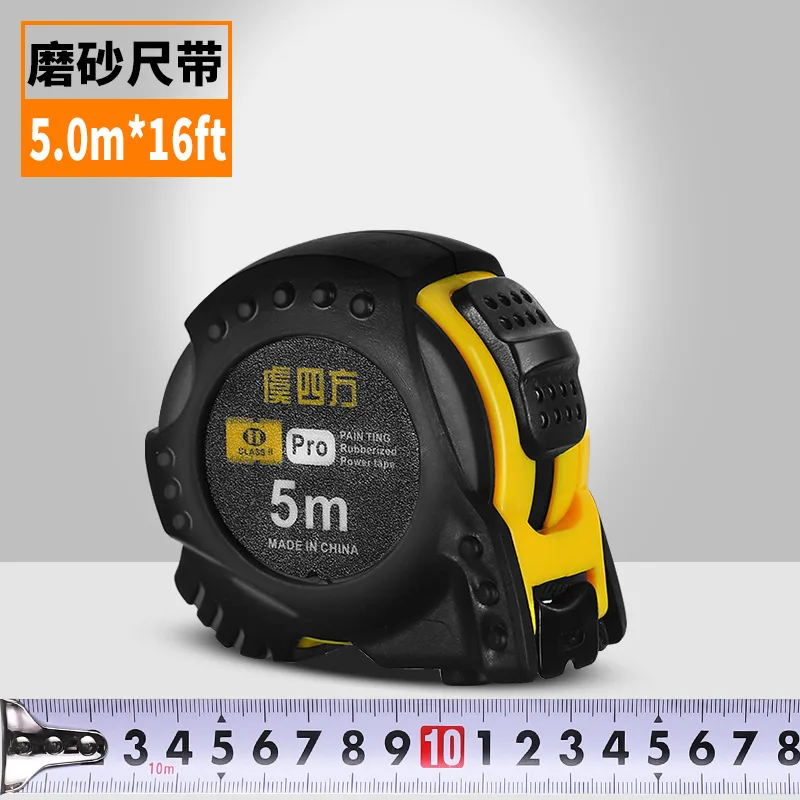

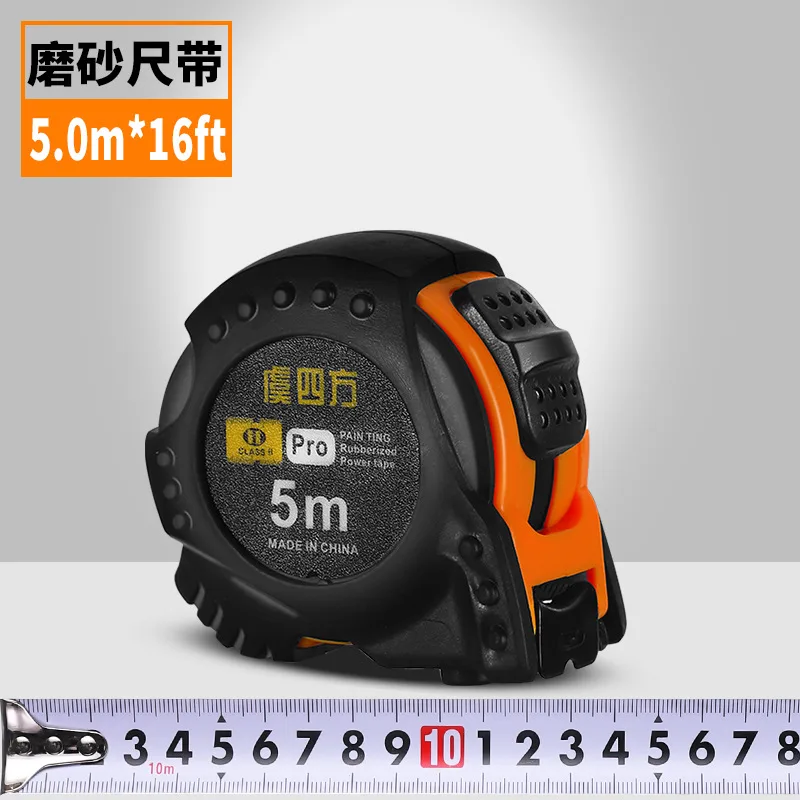

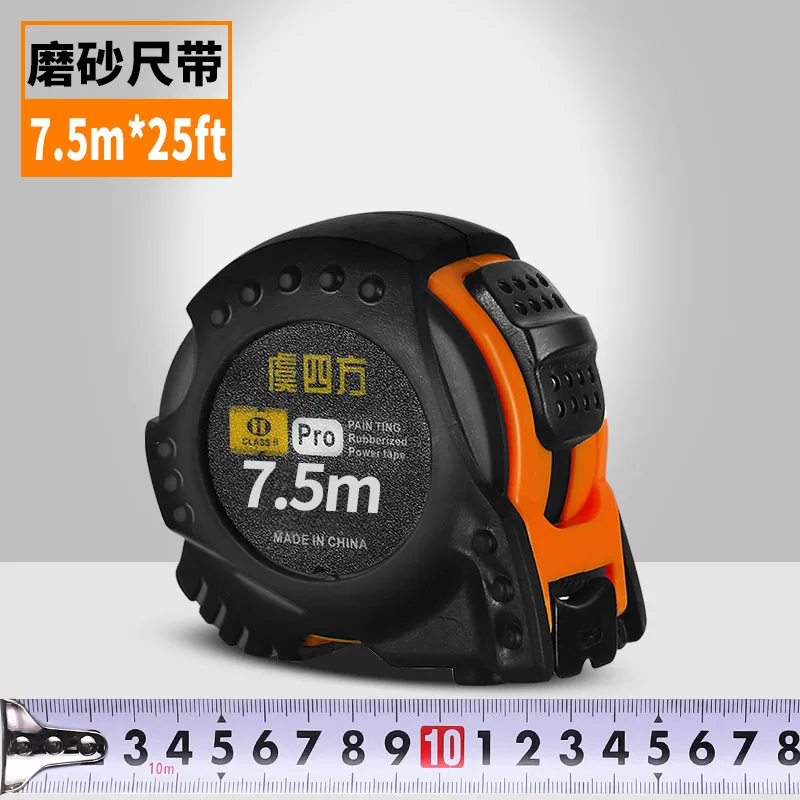

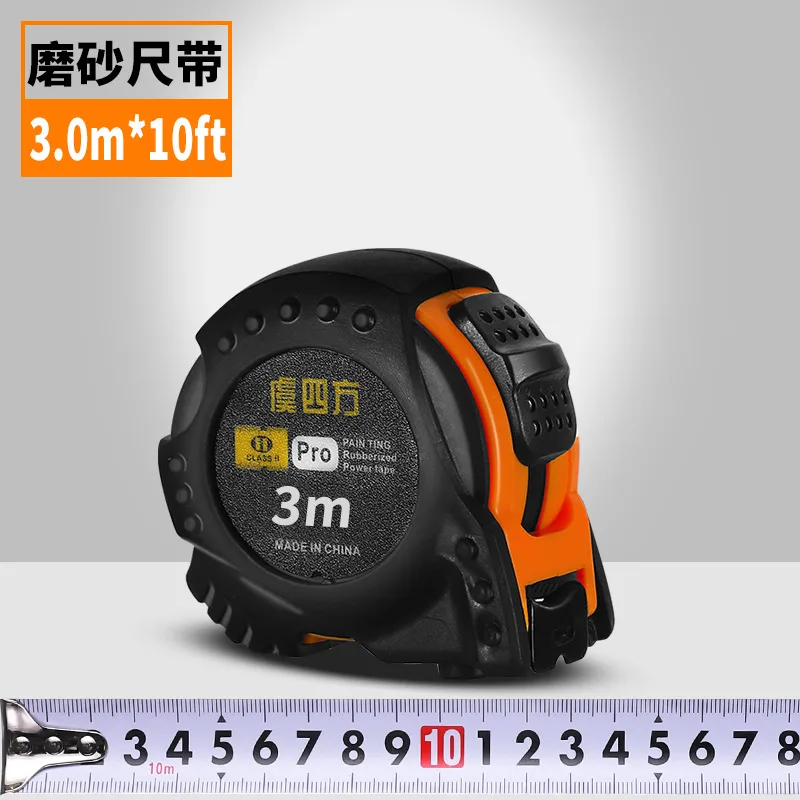

Matte blade

A matte or satin finish scatters light instead of reflecting it. Under floodlights, in a warehouse or in low winter sun, that is the difference between reading a graduation at an angle and losing it in the glare off a polished blade.

The same surface holds print well, which is why matte blades are the usual choice where the tape is printed with a private label.

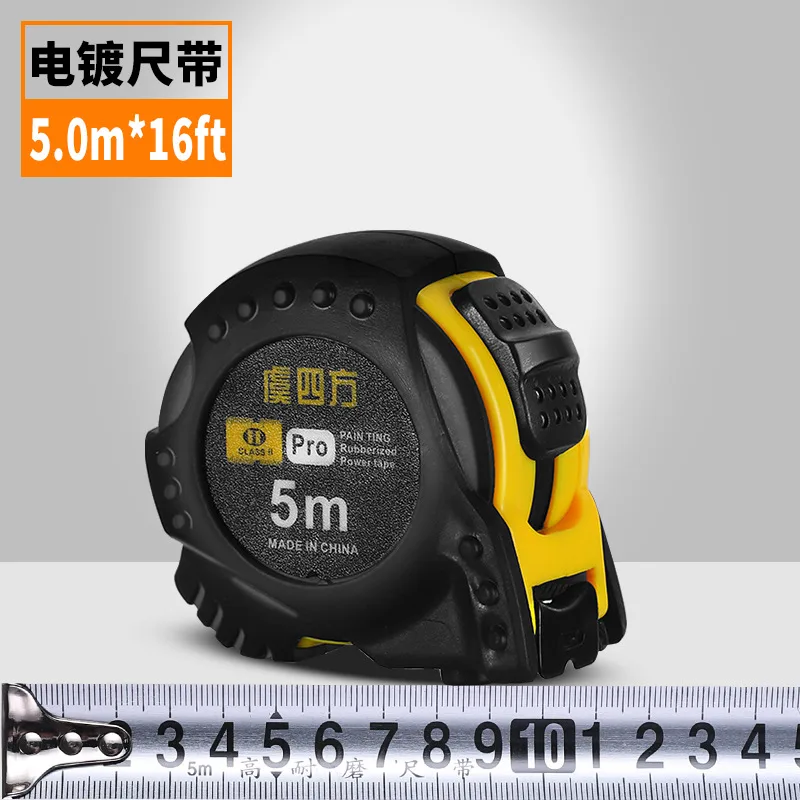

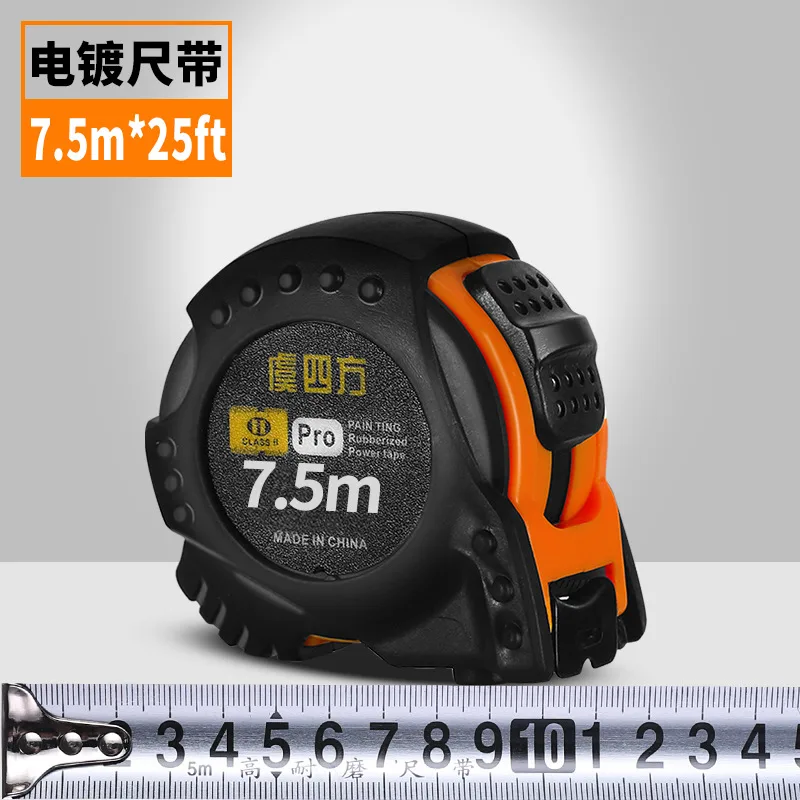

Electroplated blade

Electroplating puts a plated layer over the steel so water and mortar dust sit on top of the plating rather than attacking the blade. On a damp site, or for a tape that lives in an unheated van over winter, that is the finish that lasts.

The plated surface is harder than bare steel, so it also resists the scratching that starts along blade edges when grit gets inside the case.

Available Models and Prices

Seven sizes are in stock. Prices are per tape in USD.

Specifications

Packaging Information

Tapes ship individually in retail boxes or bags. Carton quantities are available on request.

Where It Is Used

General site work and labouring, roofing and cladding where glare is a problem, damp and cold-store environments, plant and vehicle maintenance, and bulk supply to crews and tool stores.

Choosing a Steel Tape Measure

1. Match blade length to the work: 3 m and 5 m for general use, 7.5 m and 10 m where a longer reach is needed.
2. Blade width decides how far the tape stands out unsupported – 19 mm is standard, 25 mm reaches further on long measurements.
3. Choose a nylon-coated or frosted blade where the tape is used every day and abrasion matters.
4. Check the hook and the case for how the tape will be carried: belt clip, lanyard or pocket.

Care and Maintenance

Wipe the blade dry before it retracts and let it retract slowly rather than letting it snap back; grit on the blade is what wears the coating and the return spring.

Do not use the tape as a straightedge or a scraper, and do not leave it clipped to a belt outdoors in the rain.

OEM and Bulk Supply

The supplier prints custom logos on the case and the blade and offers own-brand packaging, with OEM and ODM support for private-label tape ranges.

Frequently Asked Questions

Which options are available?

This listing covers 7 options: 3 m, 16 mm, Matte Blade; 5 m, 19 mm, Matte Blade; 5 m, 25 mm, Matte Blade; 7.5 m, 25 mm, Matte Blade; 5 m, 19 mm, Electroplated Blade; 5 m, 25 mm, Electroplated Blade; 7.5 m, 25 mm, Electroplated Blade. All are in stock and priced individually.

What is it used for?

General site work and labouring, roofing and cladding where glare is a problem, damp and cold-store environments, plant and vehicle maintenance, and bulk supply to crews and tool stores.

Can I buy in bulk or with my own branding?

Yes. Custom case and blade printing, own-brand packaging and mixed cartons are available on request, with OEM and ODM support.

Summary

Two choices decide how this tape behaves: the case is wrapped in a rubber sleeve that absorbs the drop, and the blade is ordered either matte, which kills glare, or electroplated, which stands up to damp. Offered in 7 configurations, each priced separately.

Typical use: General site work and labouring, roofing and cladding where glare is a problem, damp and cold-store environments, plant and vehicle maintenance, and bulk supply to crews and tool stores.
