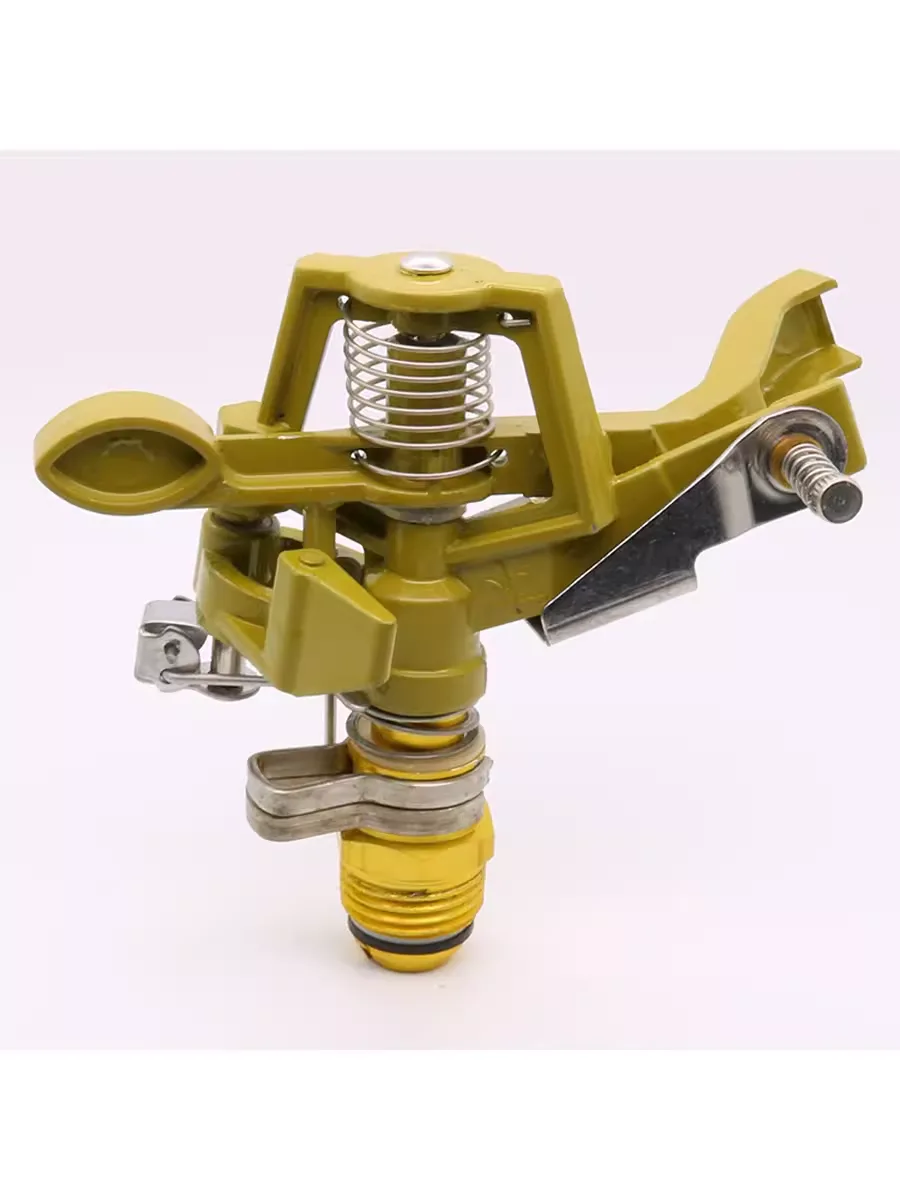

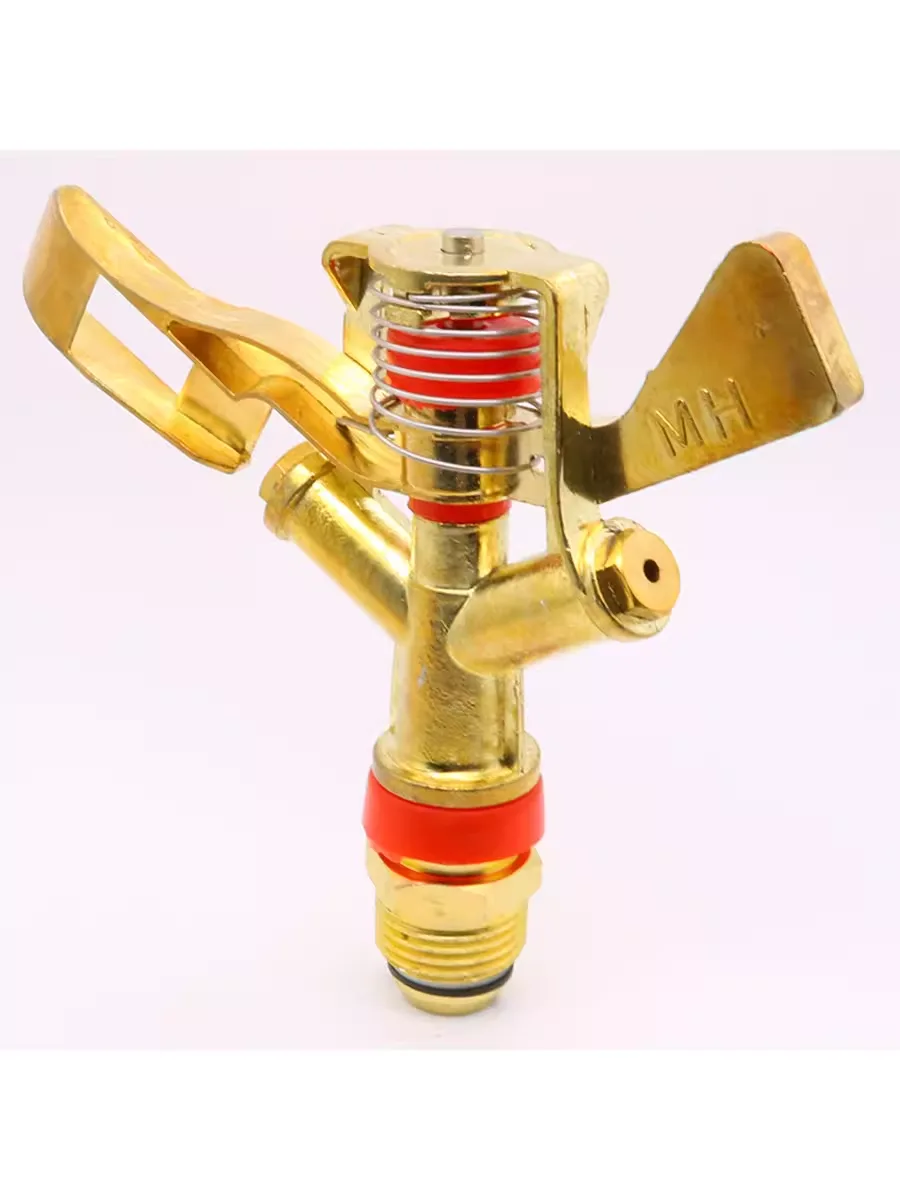

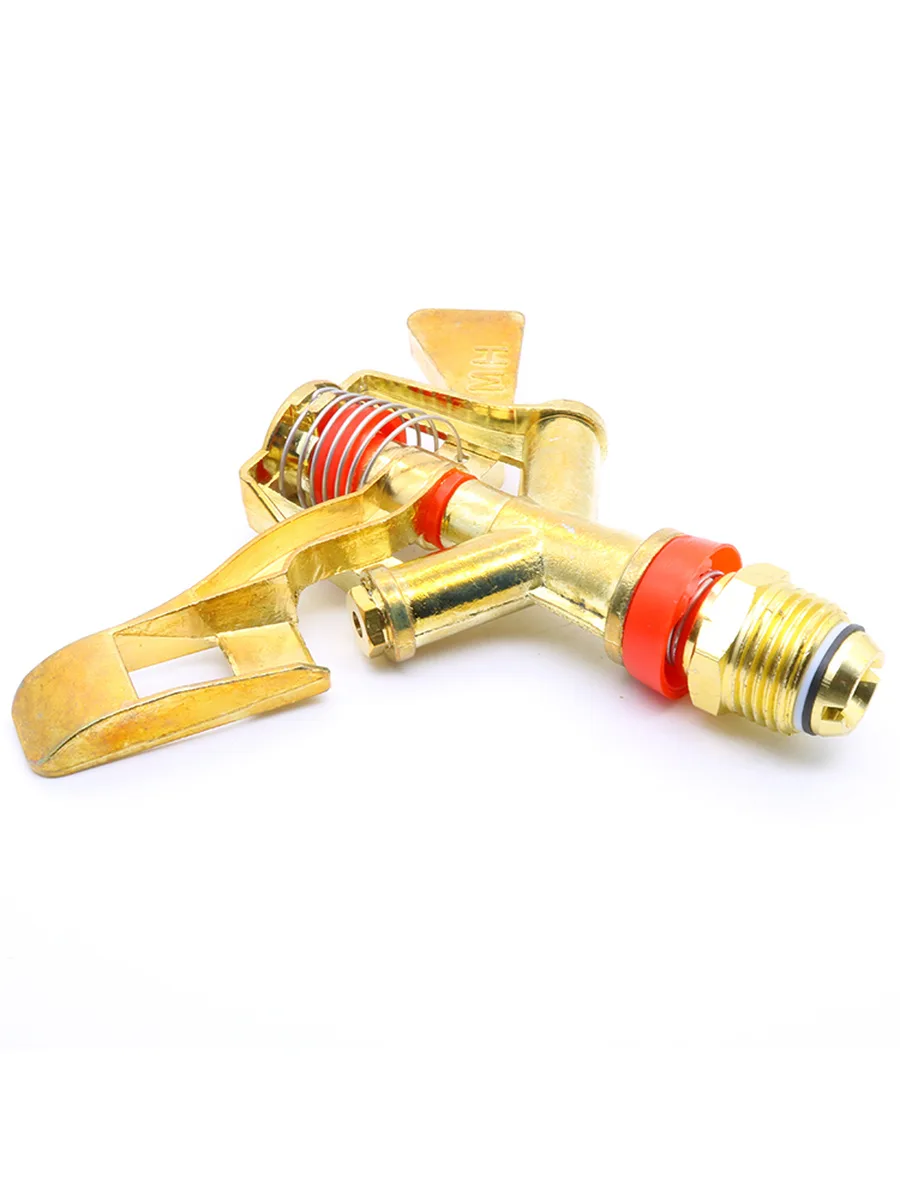

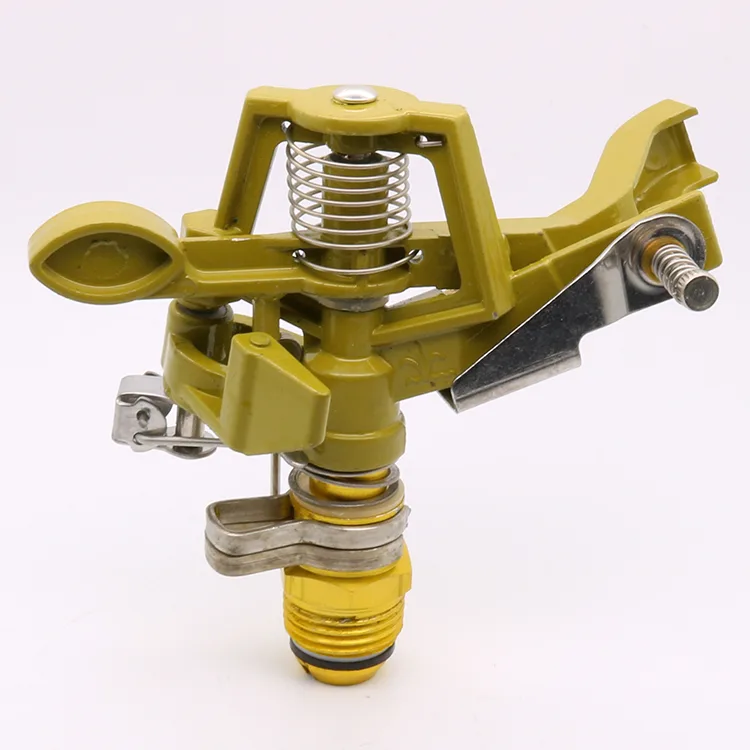

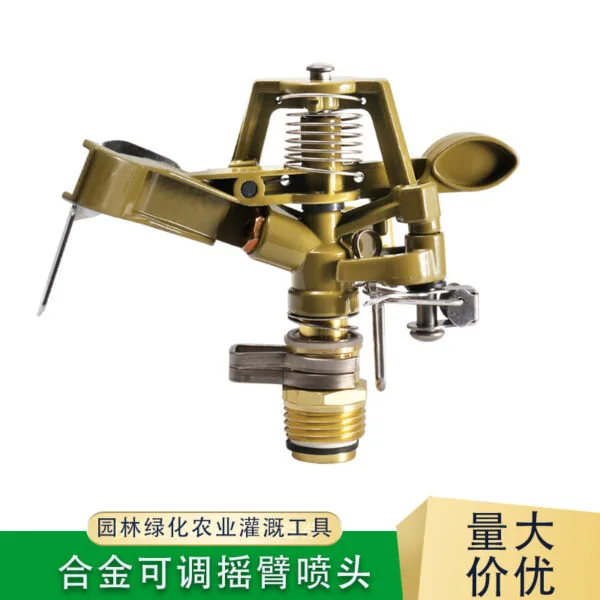

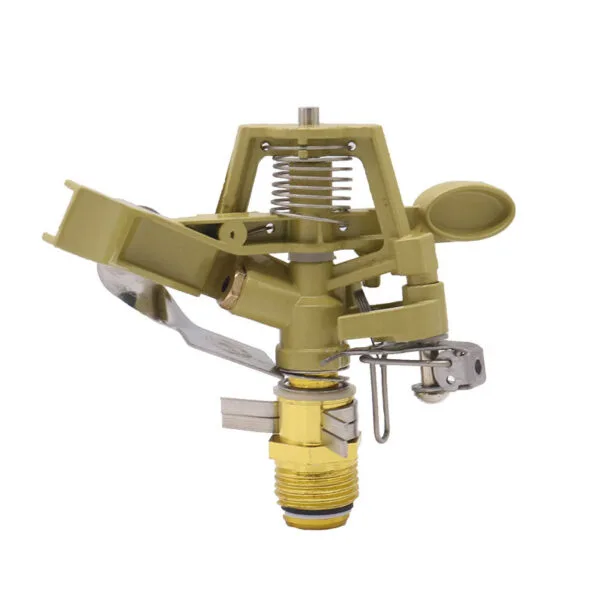

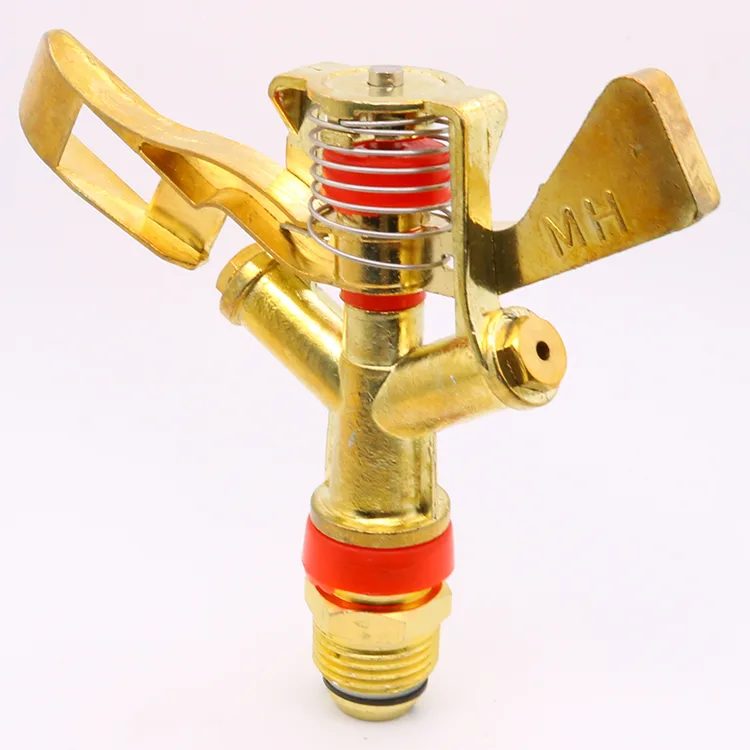

Impact Sprinkler Head, Alloy, 1/2 in, 3/4 in, 1 in, 180 degree and 360 degree

An impact sprinkler covers ground a static spray head cannot reach: the arm breaks the jet and swings the head round, so one unit waters a full circle. This head takes 1/2 in, 3/4 in, 1 in and runs 180 degree and 360 degree coverage, with the arc set by hand. Made by the supplier.

Impact Sprinkler Head: Overview

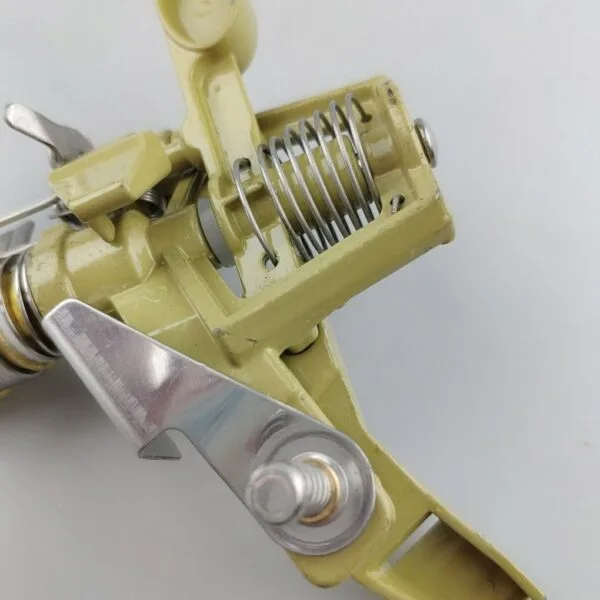

The head works on a swinging arm that interrupts the jet and indexes the body round on each pass. That is why an impact sprinkler throws further than a fixed sprayer on the same pressure.

The arc is set with the trip collars, so the same head will water a full circle, a half circle or a strip along a fence line.

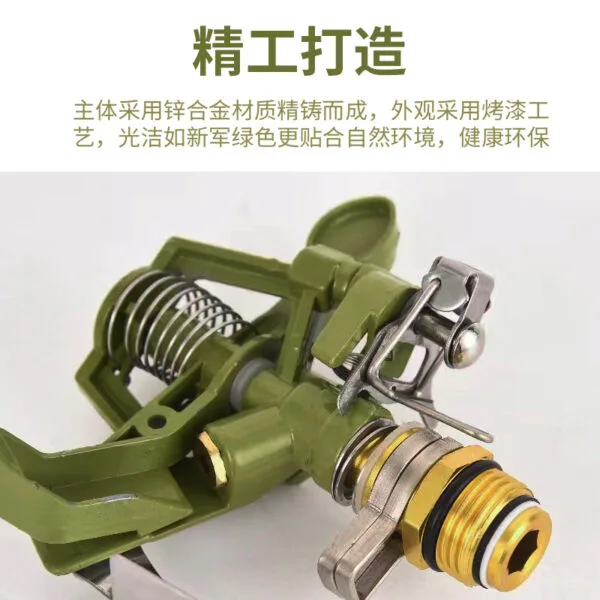

The body is alloy rather than plastic, which keeps the bearing and the arm accurate over seasons of outdoor use.

Key Features at a Glance

• Alloy body – holds its shape and bearing better than plastic.
• 180 degree and 360 degree coverage – set the arc with the trip collars.
• 1/2 in, 3/4 in, 1 in inlet – standard garden and landscape connection.
• Adjustable without tools – arc and deflector set by hand.
• Long throw – the arm carries the jet further than a static head.
• Lawn, beds and sports turf – for garden and landscape irrigation.

Setting up the Sprinkler

Setting the arc

Set one trip collar for the start of the arc and the other for the end, then run the head through a full cycle to check the water is falling where it is wanted and not on a path or a wall.

Adjust the deflector to change the throw rather than the pressure. Turning the pressure down shortens the throw but also spoils the break-up of the jet.

Pressure and spacing

These heads need a reasonable working pressure to index properly. On a long run of small hose the arm will stall; a bigger bore hose or a shorter run usually fixes it.

Space heads so each covers the next, rather than leaving strips. On a full circle a 180 degree and 360 degree head covers a circle with a radius set by pressure, and overlapping the edges is what gives even coverage.

Care

Keeping it turning

Clean the nozzle and the arm pivot. Grit and lime in the pivot are the usual reasons a head stops indexing, and both are removable with a brush and clean water.

Fit a filter on the supply where the water carries sand; the nozzle is small and the smallest grit will block it.

Winter

Take the head off the riser and drain it before frost. Water left inside splits the body, not the nozzle.

Store heads dry and indoors so the alloy does not corrode in a damp shed.

Available Models and Prices

All options are in stock. Prices are per head in USD; carton prices on request.

Specifications

Packaging Information

Heads ship bagged or boxed; carton quantities and mixed cartons are available on request.

Where It Is Used

Watering lawns, beds, allotments and playing surfaces, and for dust suppression on small sites where a fine even spray is needed over a wide area.

Choosing a Sprinkler Head

1. Inlet size: 1/2 in, 3/4 in, 1 in is the common garden and landscape fitting.
2. Choose a full-circle head for open ground and an adjustable arc where the spray has to stop at a fence or path.
3. An alloy body costs more than plastic and lasts several seasons longer outdoors.
4. Check the supply pressure – these heads need enough flow to index reliably.

Care and Maintenance

Clean the nozzle and pivot when the head stops indexing.

Fit a supply filter where the water carries sand.

Drain and remove heads before frost, and store them dry.

OEM and Bulk Supply

Own-brand printing, custom colours and retail packaging are available on request, with OEM and ODM support.

Frequently Asked Questions

Which options are available?

This listing covers 7 options: 1/2 in360 Degree Sprinkler Head; 1/2 in180 Degree Sprinkler Head Adjustable Degree; 3/4 in360 Degree Sprinkler Head; 3/4 in180 Degree Sprinkler Head Adjustable Degree; 1 in Female Thread 360 Degree Sprinkler Head; 1 in Female Thread 180 Degree Sprinkler Head Adjustable Degree; 6. All are in stock and priced individually.

What is it used for?

Watering lawns, beds, allotments and playing surfaces, and for dust suppression on small sites where a fine even spray is needed over a wide area.

Can I buy in bulk or with my own branding?

Yes. Own-brand moulding, printing and custom packaging are available on request, with OEM and ODM support.

Summary

An impact sprinkler covers ground a static spray head cannot reach: the arm breaks the jet and swings the head round, so one unit waters a full circle. Offered in 7 configurations, each priced separately.

Typical use: Watering lawns, beds, allotments and playing surfaces, and for dust suppression on small sites where a fine even spray is needed over a wide area.
