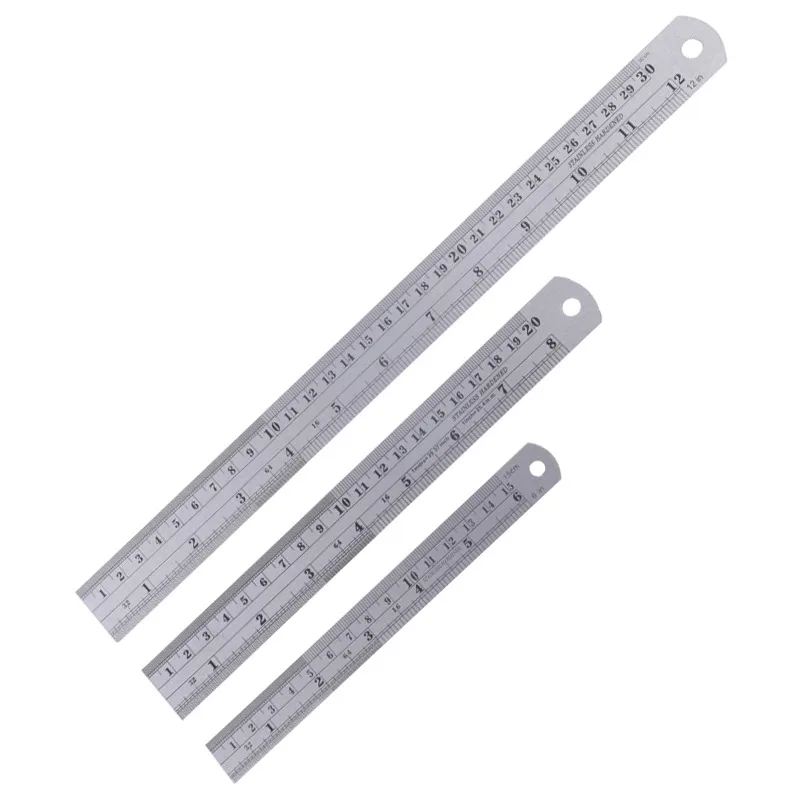

Stainless Steel Rule, 150 mm to 1 m, Metric and Imperial Scales

A steel rule is the measure that is always to hand: it is not a tape, so it stays straight, lies flat on the work and can be used as a straight edge as well as a scale. This range runs from a 150 mm pocket rule up to a 1 m rule, ruled in both metric and imperial.

Steel Rule: Overview

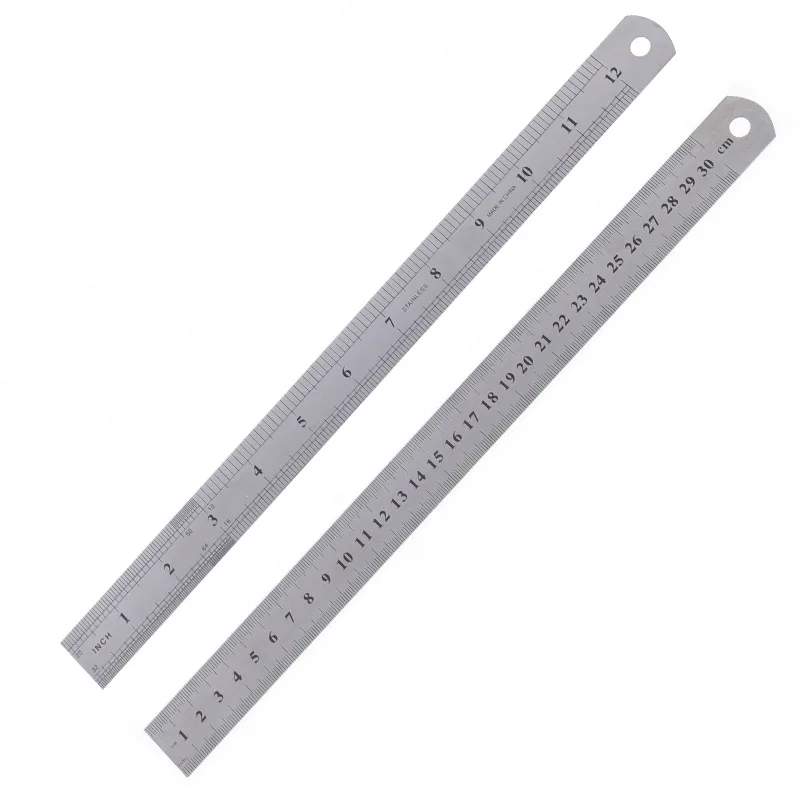

The rule is stainless steel, rolled and hardened, with the graduations etched and filled so they stay legible after the surface has been handled. One face is graduated in millimetres and one in inches and fractions, which is what makes the rule useful on imported equipment and on drawings that mix the two systems.

Thickness and width increase with length: the 150 mm rule is 0.5 or 0.7 mm thick and 19 mm wide, while the 1 m rule is 1.0 mm thick and 28 mm wide. That keeps a long rule from bending when it is used to strike a line, and it keeps the short rule light enough to sit in a pocket or a top pocket.

Several of the sizes are also offered with a conversion table on the reverse instead of the imperial scale, which suits bench work where metric dimensions are being read off an imperial drawing, or the other way round.

Steel rules of this type sell into engineering and fabrication, sheet metal and HVAC work, carpentry and shop fitting, and the counters of tool and hardware retailers.

Key Features at a Glance

• Stainless steel – etched and filled graduations.
• Metric and imperial – one scale on each face.
• 150 mm to 1 m – pocket rule through to bench rule.
• Conversion table option – on the larger sizes.
• Flat and true – doubles as a straight edge.
• Hardened and rolled – holds its edge.

Available Models and Prices

All options are in stock. Prices are per unit in USD; carton prices on request.

Specifications

Packaging Information

Tapes ship individually in retail boxes or bags. Carton and mixed-case quantities are available on request.

Where It Is Used

Engineering and machine shop work, sheet metal and HVAC fabrication, carpentry and shop fitting, setting out and marking, quality inspection benches, and tool and hardware retail counters.

Choosing a Steel Rule

1. Choose the length by the widest thing being measured: 150 or 300 mm for bench and machine work, 600 mm and 1 m for sheet, panel and setting-out work where a tape measure would sag.
2. Choose the metric-and-imperial version where the work mixes the two systems, or the conversion table version where dimensions are being converted back and forth all day.
3. Take the thicker rule for a rule that will be used as a straight edge as well as a scale. The 1.0 mm rules will not bend under a pencil line; the 0.5 mm rule is for measuring only.
4. Keep a short rule on the person and a long one at the bench rather than trying to work with a single size.

Care and Maintenance

Wipe the rule dry after use, especially after working on site: a steel rule that is put away damp will pit and the graduations will fill with rust.

Do not use a steel rule as a screwdriver or a scraper. The ends are square and true for measuring from, and a burred end will not sit flat on the work.

OEM and Bulk Supply

T

h

e

f

a

c

t

o

r

y

o

f

f

e

r

s

o

w

n

–

b

r

a

n

d

l

a

b

e

l

l

i

n

g

a

n

d

p

r

i

n

t

e

d

p

a

c

k

a

g

i

n

g

,

a

n

d

a

c

c

e

p

t

s

O

E

M

a

n

d

O

D

M

o

r

d

e

r

s

o

n

s

t

e

e

l

r

u

l

e

s

.

Frequently Asked Questions

Which options are available?

This listing covers 18 options: 150 x 19 x 0.5 mm, metric and imperial; 150 x 19 x 0.7 mm, metric and imperial; 200 x 26 x 0.7 mm, metric and imperial; 300 x 26 x 0.7 mm, metric and imperial; 300 x 28 x 1.0 mm, metric and imperial; 400 x 28 x 0.9 mm, metric and imperial; 500 x 28 x 0.9 mm, metric and imperial; 600 x 28 x 0.9 mm, metric and imperial; 1000 x 28 x 1.0 mm, metric and imperial; 150 x 19 x 0.7 mm, conversion table back; 150 x 19 x 0.8 mm, conversion table back; 200 x 26 x 0.7 mm, conversion table back; 300 x 28 x 0.7 mm, conversion table back; 300 x 28 x 0.9 mm, conversion table back; 400 x 28 x 0.9 mm, conversion table back; 450 x 28 x 0.7 mm, conversion table back; 600 x 28 x 0.9 mm, conversion table back; 1000 x 28 x 1.0 mm, conversion table back. All are in stock and priced individually.

How heavy is it and how is it packed?

The unit weighs about 13 g to about 230 g by size. Tapes ship individually in retail boxes or bags. Carton and mixed-case quantities are available on request.

What is it made of?

Key material: Stainless steel, etched and filled. Other specifications are listed in the Specifications table above.

What is it used for?

Engineering and machine shop work, sheet metal and HVAC fabrication, carpentry and shop fitting, setting out and marking, quality inspection benches, and tool and hardware retail counters.

Can I buy in bulk or with my own branding?

Yes. Custom case and blade printing, own-brand packaging and mixed cartons are available on request, with OEM and ODM support.

Summary

A steel rule is the measure that is always to hand: it is not a tape, so it stays straight, lies flat on the work and can be used as a straight edge as well as a scale. Offered in 18 configurations, each priced separately.

Typical use:

Engineering and machine shop work, sheet metal and HVAC fabrication, carpentry and shop fitting, setting out and marking, quality inspection benches, and tool and hardware retail counters.
