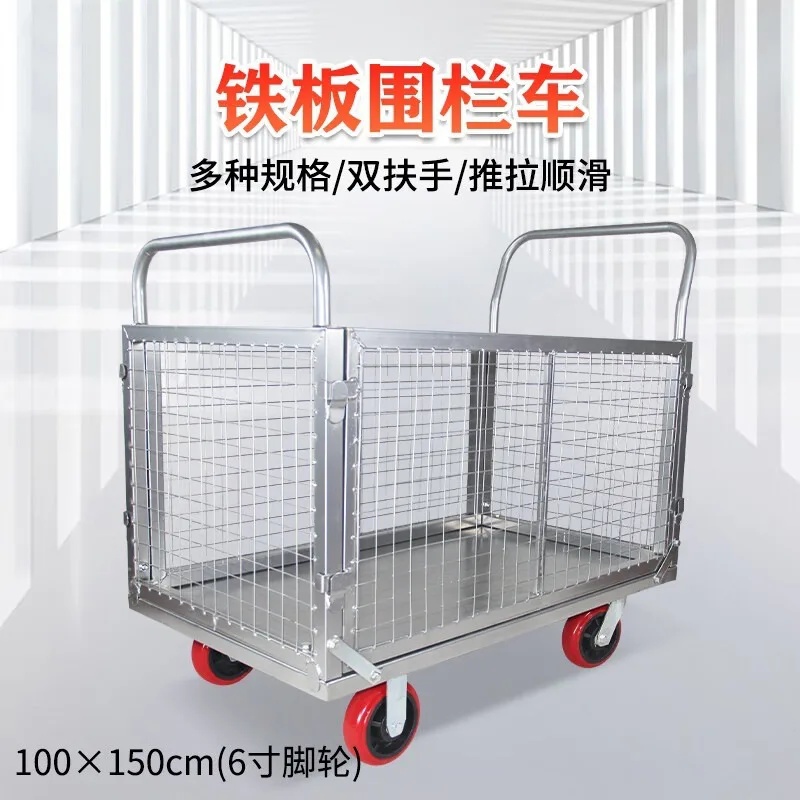

Steel Fenced Trolley, 600 x 900 to 1000 x 1500 mm, 400 to 800 kg, TPR or PU

A fenced trolley is what keeps a load on the platform while it is moved: the fence turns a flat trolley into a cage that can be pushed round a warehouse, loaded from a shelf and tipped onto a tail lift without the contents sliding off. This range covers 600 x 900 to 1000 x 1500 mm platforms at 400 to 800 kg.

Steel Fenced Trolleys: Overview

The platform is steel plate inside a folding fence, on four castors. The fence is what makes the difference in daily use: goods can be stacked above the platform edge, and a load that shifts during a turn stays on the trolley rather than on the floor.

Load ratings run from 400 kg on the 600 x 900 mm platform to 800 kg on the 1000 x 1500 mm version, with the self-weight rising from 25 kg to 48 kg. It is worth matching the castor to the floor as well as the load: TPR rolls quietly and is kind to a tiled or resin floor, while polyurethane takes a heavier point load and lasts longer on concrete.

Both the 6 in and 8 in castor versions are offered on the larger platforms, and the smallest platforms come with a plain wheel or a braked wheel. Choose the braked version where the trolley is parked between moves or used on a slope.

Key Features at a Glance

• 400 to 800 kg – five platform sizes with matching capacity.
• 600 x 900 to 1000 x 1500 mm – from a picking cart to a transfer trolley.
• TPR or polyurethane wheels – quiet on tiles, durable on concrete.
• 6 in and 8 in castors – plain or braked options.
• Folding steel fence – keeps a stacked load on the platform.

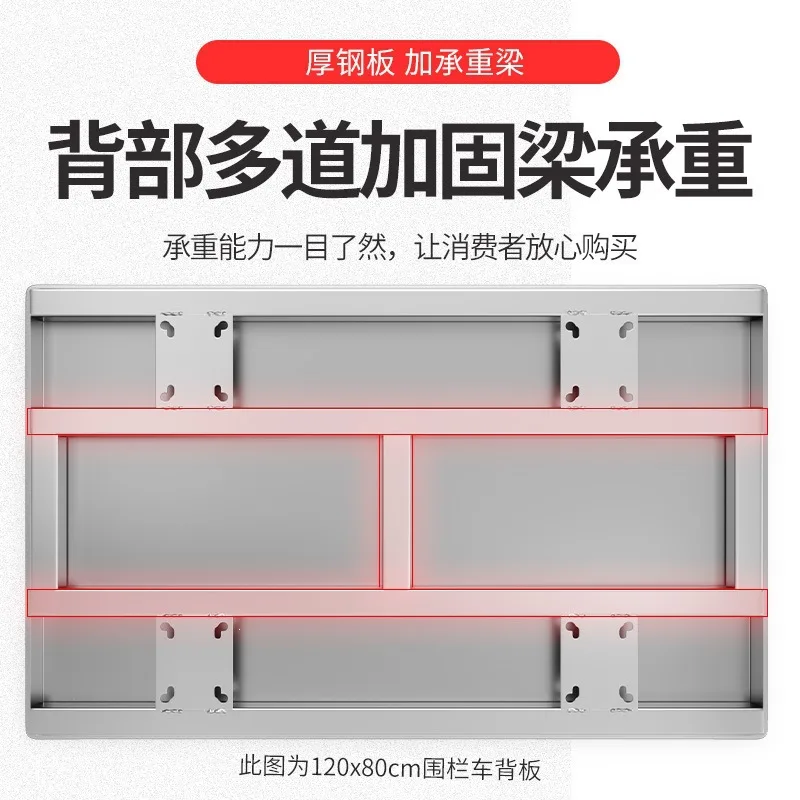

• Steel plate deck – a solid surface to load and unload on.

Choosing the Size and the Wheels

Matching the platform to the job

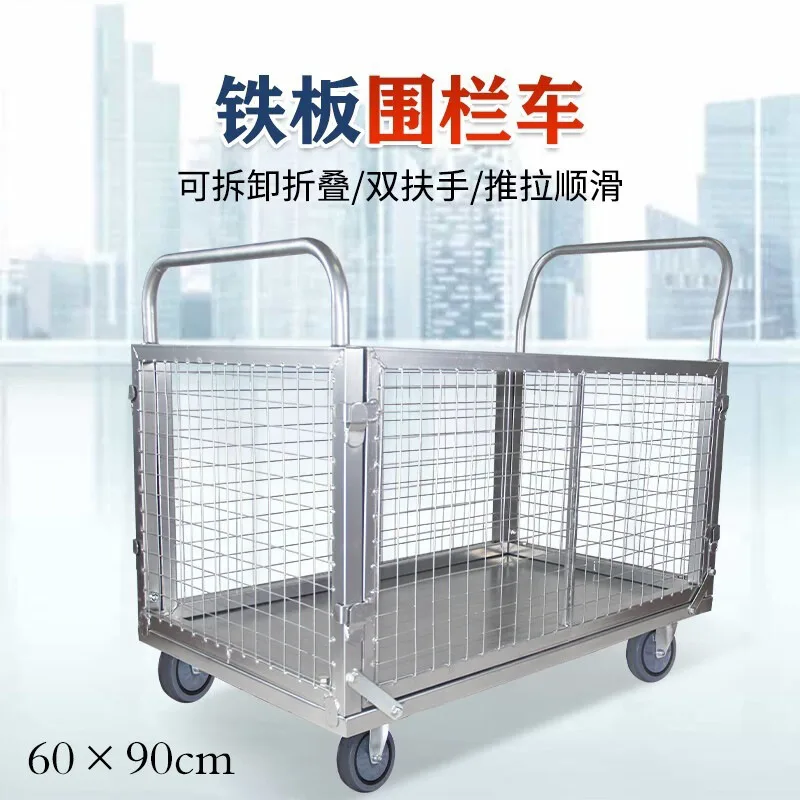

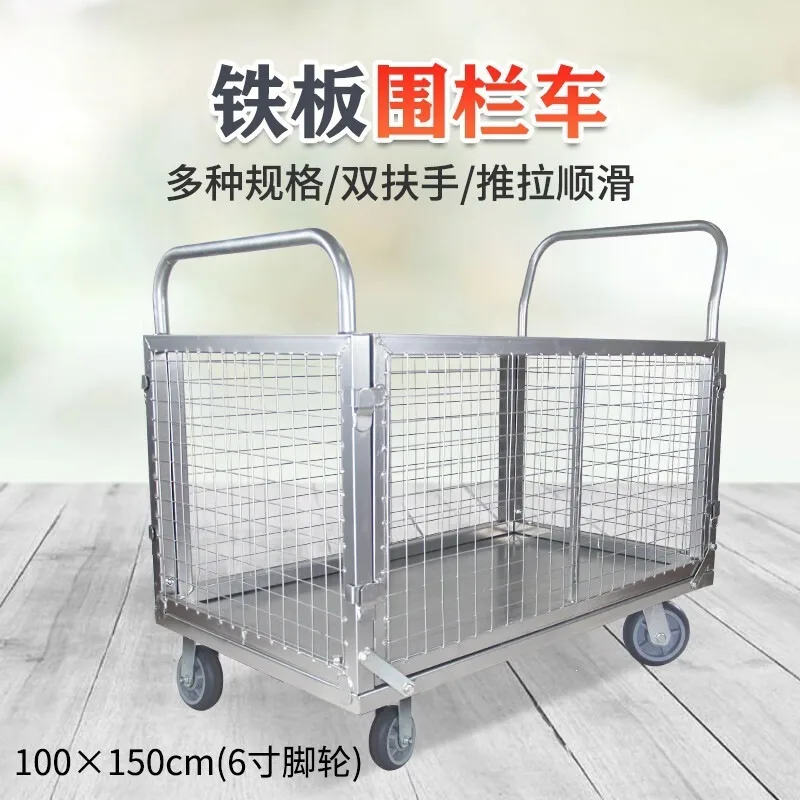

A 600 x 900 mm platform is the picking cart: it turns in a narrow aisle and carries a cage of parts or a stack of totes. The 700 x 1200 mm size is the general warehouse trolley, and 1000 x 1500 mm is for bulk transfer where the load is a pallet’s worth of goods rather than a handful of boxes.

Take the capacity as a whole-trolley figure and leave headroom. A trolley that is run at its rated load on rough concrete will start to lose castors long before a trolley working at two-thirds of it.

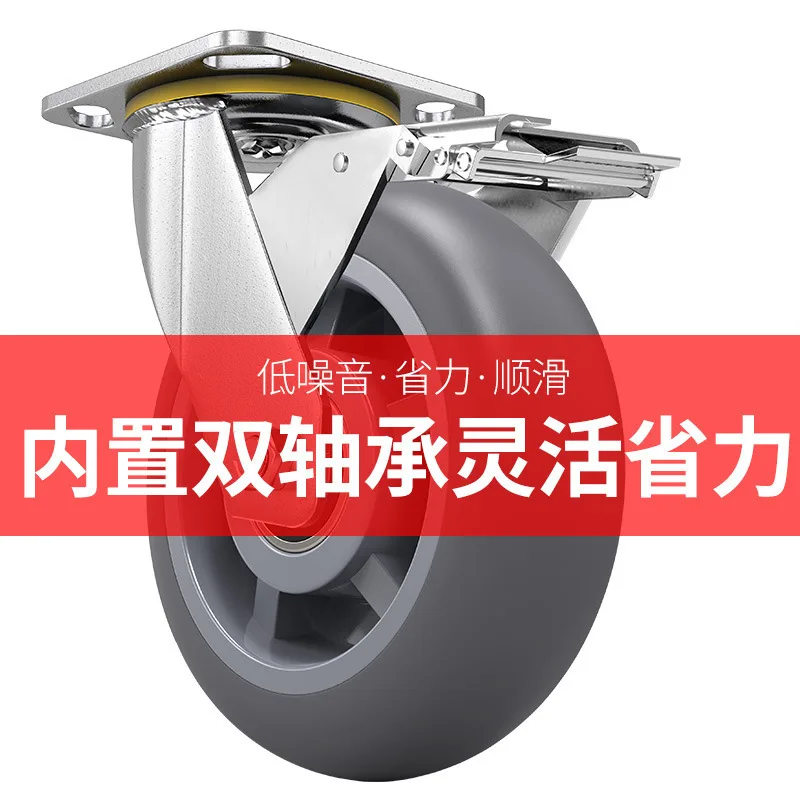

Wheel material and the floor

Thermoplastic rubber rolls quietly and grips, which is why it suits shops, hospitals and resin or tiled floors. It is the better choice where noise and floor marking matter.

Polyurethane takes a heavier point load without flat-spotting and resists oils and swarf, so it is the one for a workshop or a yard. The 8 in castors roll over a lip or a drain cover far more easily than 6 in, which matters if the trolley goes in and out of a building.

Using and Maintaining the Trolley

Loading it safely

Put the heavy items low and over the castors rather than up against the fence, and keep the load inside the platform footprint. A fence stops things sliding; it is not a load-bearing structure and it will not hold a stack that leans on it.

Push rather than pull a loaded trolley, and take a corner at walking pace. Most trolley accidents are a load shifting on a turn rather than a wheel or a weld failing.

Keeping it serviceable

Clear string, tape and swarf off the castor axles and the swivel bearings, and check the castor bolts at each service. A loose castor plate cracks the bracket and then the deck.

Touch up any scratched paint on the deck and fence, and keep the trolley under cover where possible. A steel trolley stored outside will rust from the deck edge inwards, which is what eventually shortens its life.

Available Models and Prices

All sizes are in stock. Prices are per trolley in USD; these are heavy items shipped by freight, so the carriage cost is confirmed before dispatch.

Specifications

Packaging Information

Heavy units ship crated or on a pallet by freight; the carriage cost is quoted per order before dispatch.

Where It Is Used

Warehouse and distribution picking, order assembly and transfer, workshops and stores, garden centres and nurseries, and any yard or loading bay where goods are moved in bulk and have to stay on the trolley.

Choosing the Right Unit

1. Size the unit on the heaviest realistic load plus a margin, not on the average load.
2. Measure the lift or the travel distance before choosing, and leave allowance for the drum or the chain bag.
3. Match the wheel or castor material to the surface the unit will run on.
4. Check the supply: three-phase for industrial hoists, single-phase where only a domestic supply is available.
5. For anything that has to be shipped, get a freight quote on the packed weight before setting the retail price.

Care and Maintenance

Check the rope or chain, the hook and the brake before each shift, and never exceed the stated capacity.

Load the heaviest part low and over the axle or the drum, and keep the load under control with a tag line on a long lift.

Keep the chain or rope lightly oiled, the drum and guide clean, and replace any worn or distorted part rather than dressing it.

Check the fixing point as well as the unit: a beam or bracket that holds the hoist still has to carry the load.

OEM and Bulk Supply

The supplier works to order with own-brand marking and packaging, and accepts OEM and ODM work.

Frequently Asked Questions

Which options are available?

This listing covers 13 options: 1200 x 600 mm, 6 in wheels; 1200 x 600 mm, 6 in braked wheels; 600 x 900 mm, 5 in TPR; 600 x 1000 mm, 6 in TPR; 600 x 1000 mm, 6 in PU; 700 x 1200 mm, 6 in PU; 700 x 1200 mm, 6 in TPR; 700 x 1200 mm, 8 in PU; 700 x 1200 mm, 8 in TPR; 1000 x 1500 mm, 8 in PU; 1000 x 1500 mm, 6 in PU; 1000 x 1500 mm, 8 in TPR; 1000 x 1500 mm, 6 in TPR. All are in stock and priced individually.

What is it used for?

Warehouse and distribution picking, order assembly and transfer, workshops and stores, garden centres and nurseries, and any yard or loading bay where goods are moved in bulk and have to stay on the trolley.

Can I buy in bulk or with my own branding?

Yes. Own-brand marking and packaging are available on request, with OEM and ODM support.

Summary

A fenced trolley is what keeps a load on the platform while it is moved: the fence turns a flat trolley into a cage that can be pushed round a warehouse, loaded from a shelf and tipped onto a tail lift without the contents sliding off. Offered in 13 configurations, each priced separately.

Typical use:

Warehouse and distribution picking, order assembly and transfer, workshops and stores, garden centres and nurseries, and any yard or loading bay where goods are moved in bulk and have to stay on the trolley.
